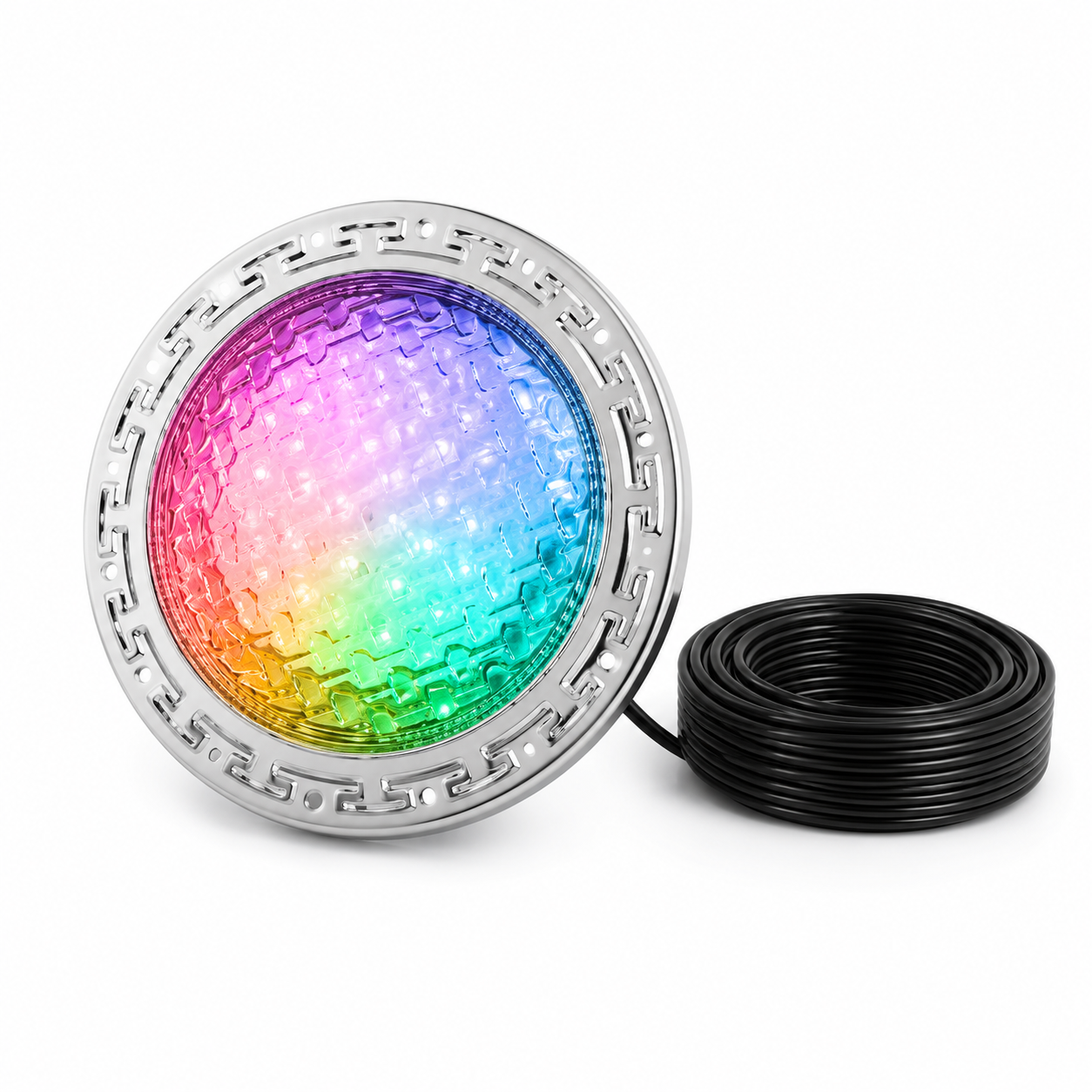

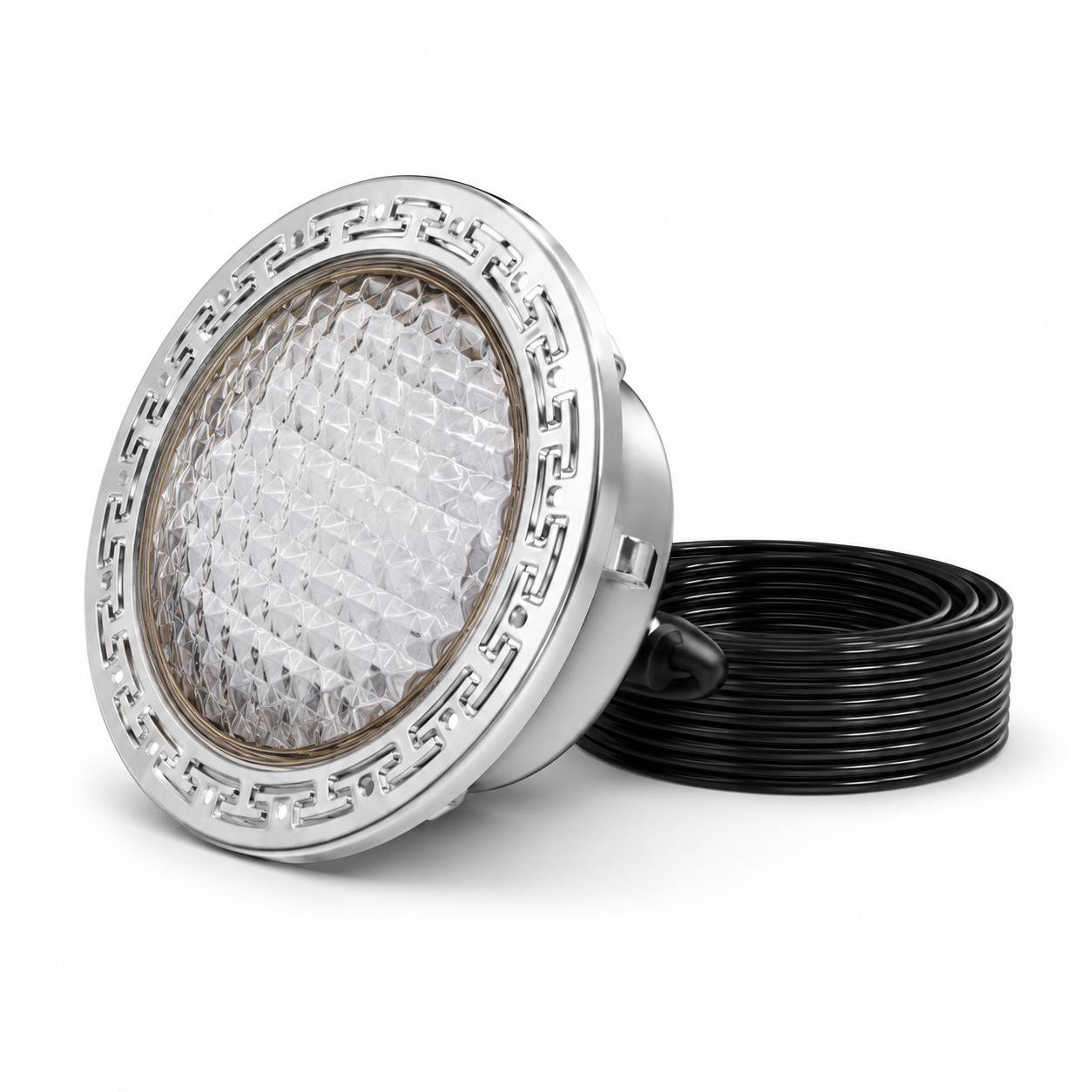

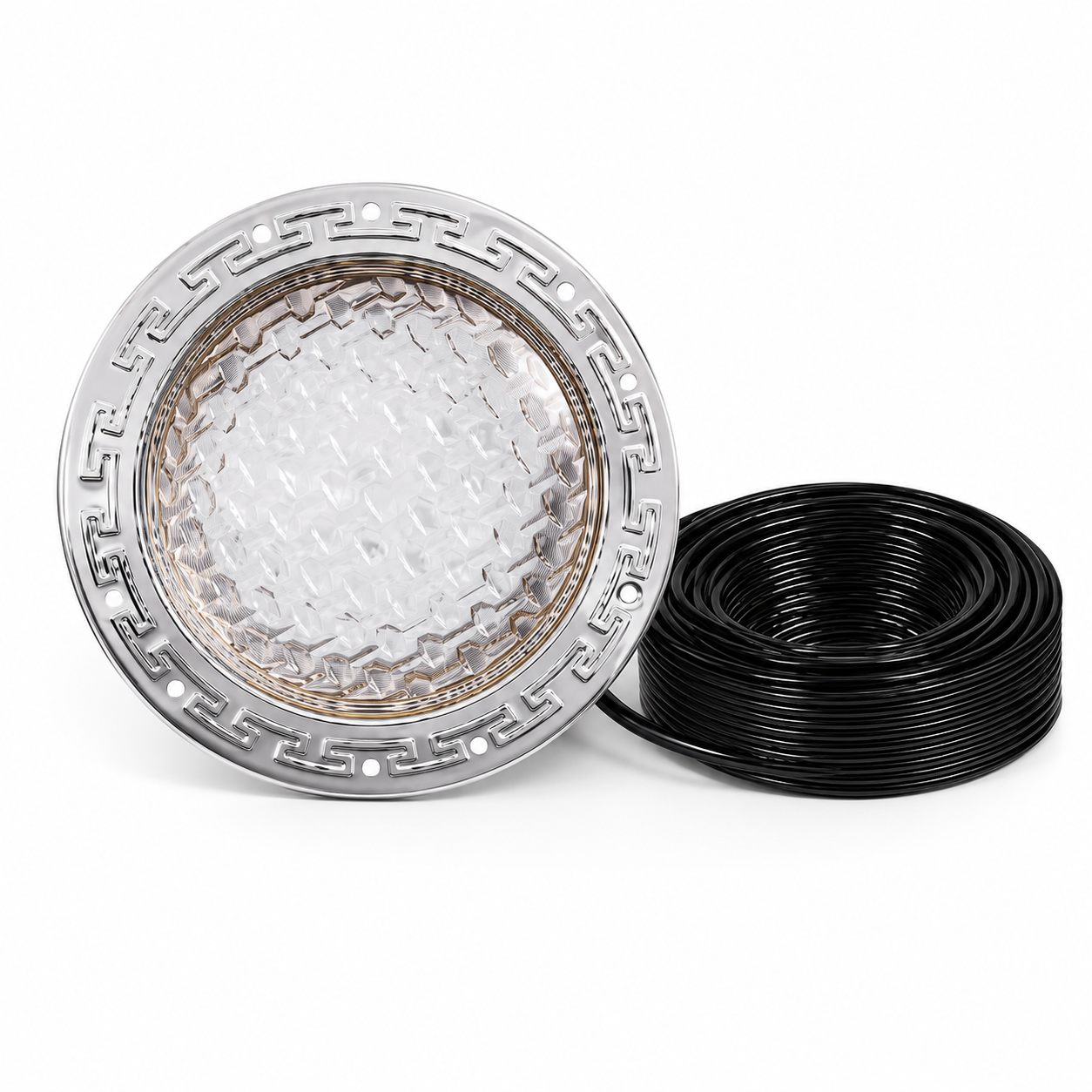

LED Pool Light Replacement for 10 Inch Niche

Brightness
Cable Length (ft)
Voltage
Not sure what to select?
$209.00
$209.00 $599.00
Shipping calculated at checkout.

Color Sync

Our color changing program matches the Pentair color sequence when using Intellitouch and Easytouch automation systems.

Perfect Fit

Our lights use the standard 10 inch bottom mounting tab and the top screw to fit into your existing niche.

2 Year Warranty

With our ultra durable design, we can offer double the warranty of the big brands.

Anti Glare Lens

Our specially designed glass fresnel lens directs light to the pool surface, not your eyes.

In stock

 A drop-in 10 inch LED replacement for large wet niche pool lights that pays for itself.  Save up to $100 per year on electricity compared to a standard incandescent pool light. Choose your voltage (12VAC or 120VAC), cable length (50, 100, or 150 ft), and brightness (35W or 42W) — all selectable at checkout to match your existing setup exactly. The 35W output is equivalent to a 400W incandescent bulb, delivering brilliant illumination at a fraction of the energy. Not sure what to choose? Give us a call and we will walk you through it.

This light installs in the standard large 10 inch niche used by the Pentair IntelliBrite 5G and Architectural Series, the Pentair Amerlite, Sta-Rite, the Hayward AstroLite, Jacuzzi brand, and the Jandy Pro Series large niche lights, with the same screw-at-top mounting and connection at your existing junction box. No pool drain required, and most swaps take about 30 minutes.

If your existing fixture is 12V, select the 12VAC option for a direct swap. If your existing fixture is 120V the light fits your niche and runs directly on your existing circuit. Not sure? Check the label on your existing light or transformer, or text us a photo and we will confirm.

Full RGB color modes plus clean bright white, from a sealed fixture rated for 50,000 hours. No bulb to change and no lens gasket to reseal, which ends the bulb-and-gasket cycle that defines the incandescent originals while cutting energy use by 80% or more.

Built to outlast the original:

  • Save up to $100/year on electricity vs. incandescent pool lights
  • Selectable voltage: 12VAC or 120VAC to match your existing circuit
  • Selectable cable length: 50, 100, or 150 ft
  • Selectable brightness: 35W (≈ 400W incandescent equivalent) or 42W
  • Perma-seal UV-stabilized housing with no water intrusion path
  • Sealed unit design, so the whole fixture is the replacement part
  • Soft diffuse lens for even illumination with no glare hot spot
  • High-efficiency LED chipset with full RGB color and bright white

Covered by a 2-year warranty against water intrusion and LED failure. Free US shipping. Please allow 7 to 15 business days for delivery. Not sure about fitment or voltage? Text a photo of your light to (239) 350-3110 and we will confirm before you order.

Replaces these light part numbers

12V originals (direct swap): IntelliBrite 5G color pool 12V: 601010, 601011, 601012, 601013, 602010, 602011, 602012. Architectural Series color 12V: 602151, 602152, 602153, 602154. Architectural white 300W equivalent 12V: 602143, 602144, 602145, 602146. Architectural white 500W equivalent 12V: 602139, 602140, 602141, 602142. Architectural white spa 12V: 618015, 618016, 618017, 618018. Architectural warm white 12V: 602147, 602148, 602149, 602150. Architectural warm white spa 12V: 602238, 602239, 602240, 602241. Architectural Turtle 12V: 602236, 602242.

120V originals (fits the same niche; no transformer needed): IntelliBrite 5G color pool 120V: 601000, 601001, 601002, 601003, 601004, 602000, 602001, 602002, 602003, 602004, 628674. Architectural color 120V: 602185, 602186, 602187, 602188, 602206. Architectural white 300W equivalent 120V: 602181, 602182, 602183, 602184, 602207. Architectural white 500W equivalent 120V: 602177, 602178, 602179, 602180, 602208. Architectural white spa 120V: 602193, 602194, 602195, 602196, 602209. Architectural warm white 120V: 602189, 602190, 602191, 602192, 602221. Architectural warm white spa 120V: 602225, 602226, 602227, 602228, 602229. Architectural Turtle 120V: 602223, 602231. Pentair Amerlite: EC602128 and related configurations. Hayward AstroLite: SP0580 series including SP0583. Jandy Pro Series: CPHVLEDS100 large niche color LED (120V, 0.4A).

Made in both voltages (check the label on your fixture): IntelliBrite 5G color spa: 640120, 640121, 640122, 640123, 640124, 640125, 640130, 640131, 640132, 640133, 640135. 5G white pool: 601100, 601101, 601102, 601103, 601104, 601105, 601106, 601107, 601108, 601200, 601201, 601202, 601203, 601204, 601205, 601206, 601207, 601208, 601300, 601301, 601302, 601303, 601304, 601305, 601306, 601307, 601308. 5G white spa: 640140, 640141, 640142, 640143, 640144, 640150, 640151, 640152, 640153. 5G Turtle Edition: 602120, 602121, 640172, 640173. EC variants: EC-602122, EC-602124, EC-640122, EC-640132, EC-601302, EC-601307.

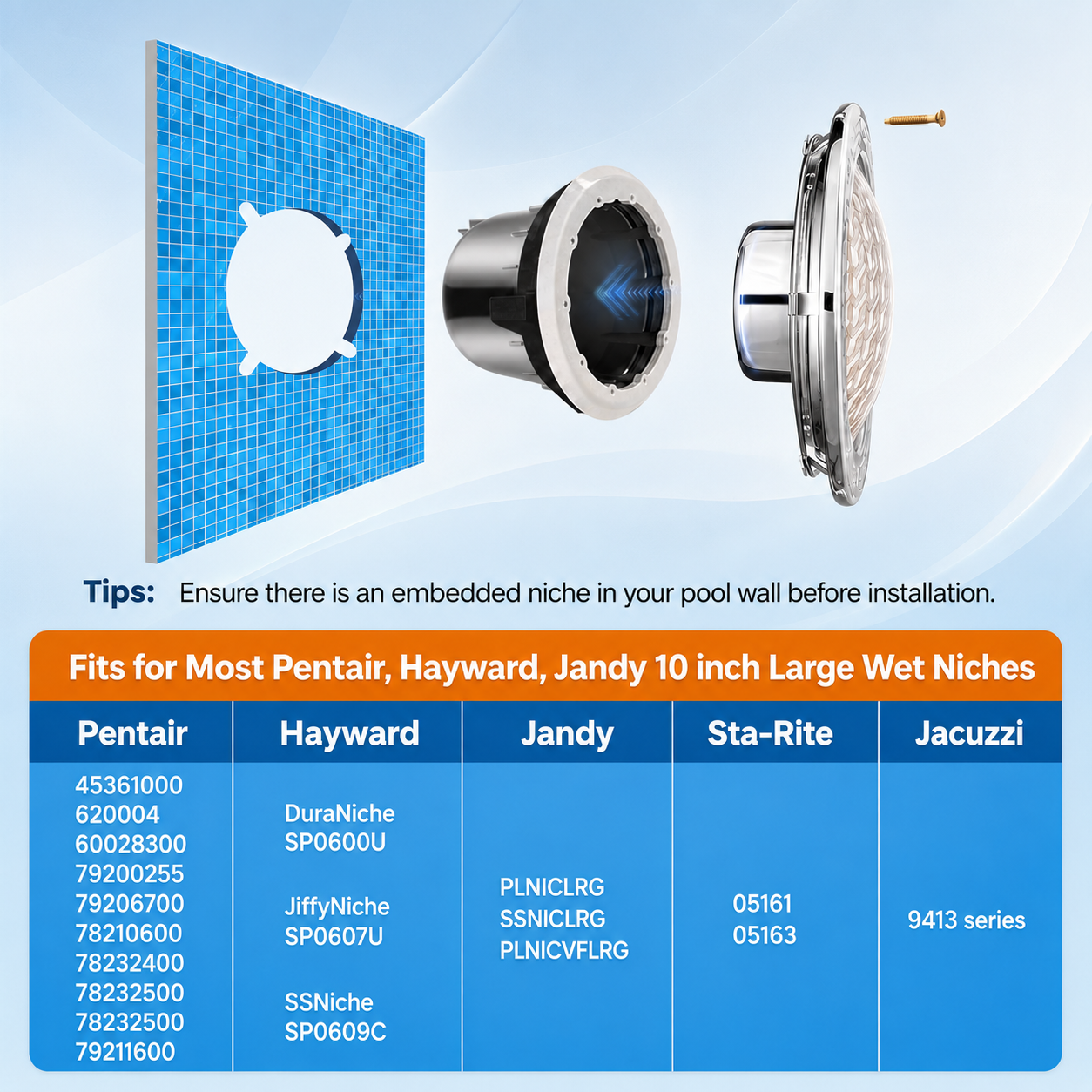

Fits these niche models

Pentair: 45361000, 620004, 60028300, 79200255, 79206700, 78210200, 78210300, 78210400, 78210401, 78210500, 78210600, 78210700, 78232400, 78232500, 79211600. Hayward: DuraNiche SP0600U, JiffyNiche SP0607U, SSNiche SP0609C. Jandy: PLNICLRG, SSNICLRG, PLNICVFLRG. Sta-Rite: 05161-2352 through 05161-2369, 05163-2395 through 05163-2396. Jacuzzi: 9413 series.

Compatible Light Part Numbers

602053

602054

602055

602056

602102

602103

602104

602105
-

618040

Specifications

Lumen Output (Brightness)

35W- 3000 lumens

Cord Length (ft)

50/100/150 Selectable

Colors

RGBW (Others available with customization)

Warranty

2 Year Standard

Voltage

12 VAC / 120VAC Selectable

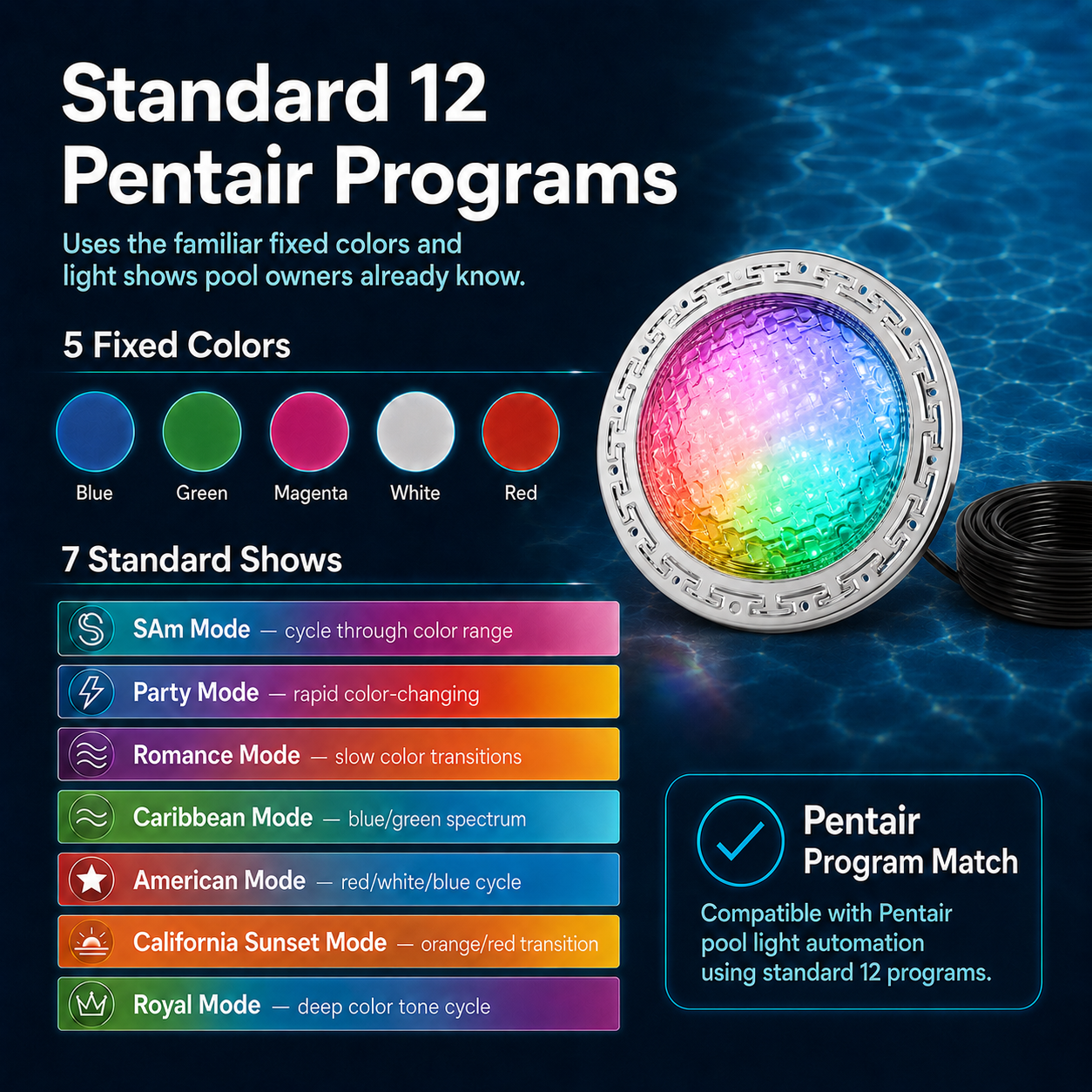

Light Sequence

Standard Pentair 12 color

LED

SMD 3535 High Output

Power

35W/42W Selectable

Durability

IP68

Controller Options

These lights are 12VAC or 120VAC depending on your selection and can function with several methods to power them.

1. Existing Pentair Automation- They will sync the color modes with your automation controller. Simply remove the old lights and install the new lights.

2. On/off switch- If using a standard on off light switch, the color sequence will change when you turn the lights on rapidly.

Download Installation Manual
LED Pool Light Replacement for 10 Inch Niche

$209.00

10 inch niche Replacement LED Pool / Spa Light for Pentair Intellibrite and others

How do I know if it's compatible?

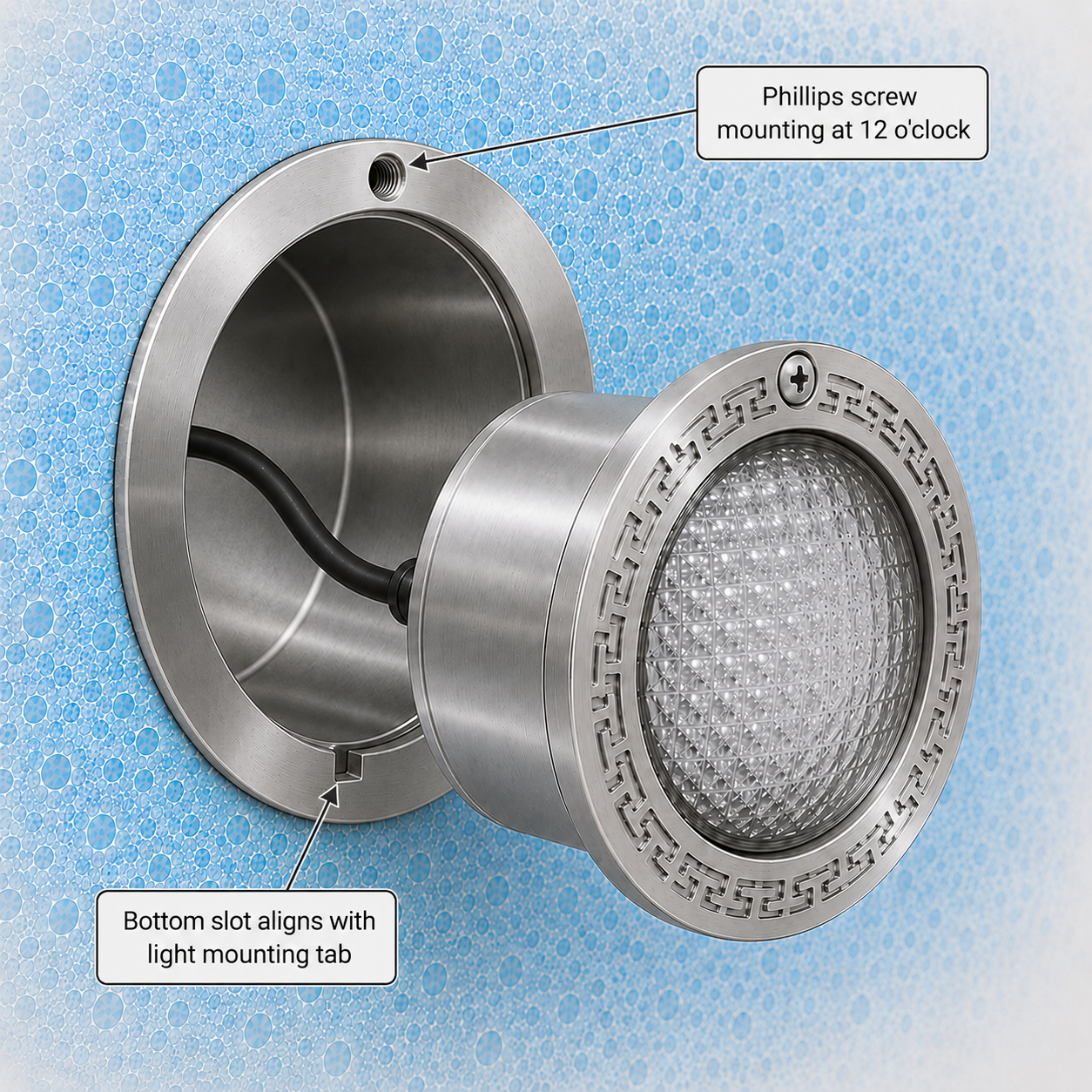

The 10 inch wet niche is a recessed opening in your pool wall.

It is identified by a top screw that secures the light and a slot at the bottom where a mounting tab will fit into and secure it at the bottom.

Our lights fit into the same niche and use the same mounting style as your removed bulb.

What's in the box?

  • LED Light

    We send the light in your specific power requirement.

  • Installation Tool

    We include a notched installation tool that will tighten to the light.

  • Gasket

    There is a round gasket that will be in the installation bag.

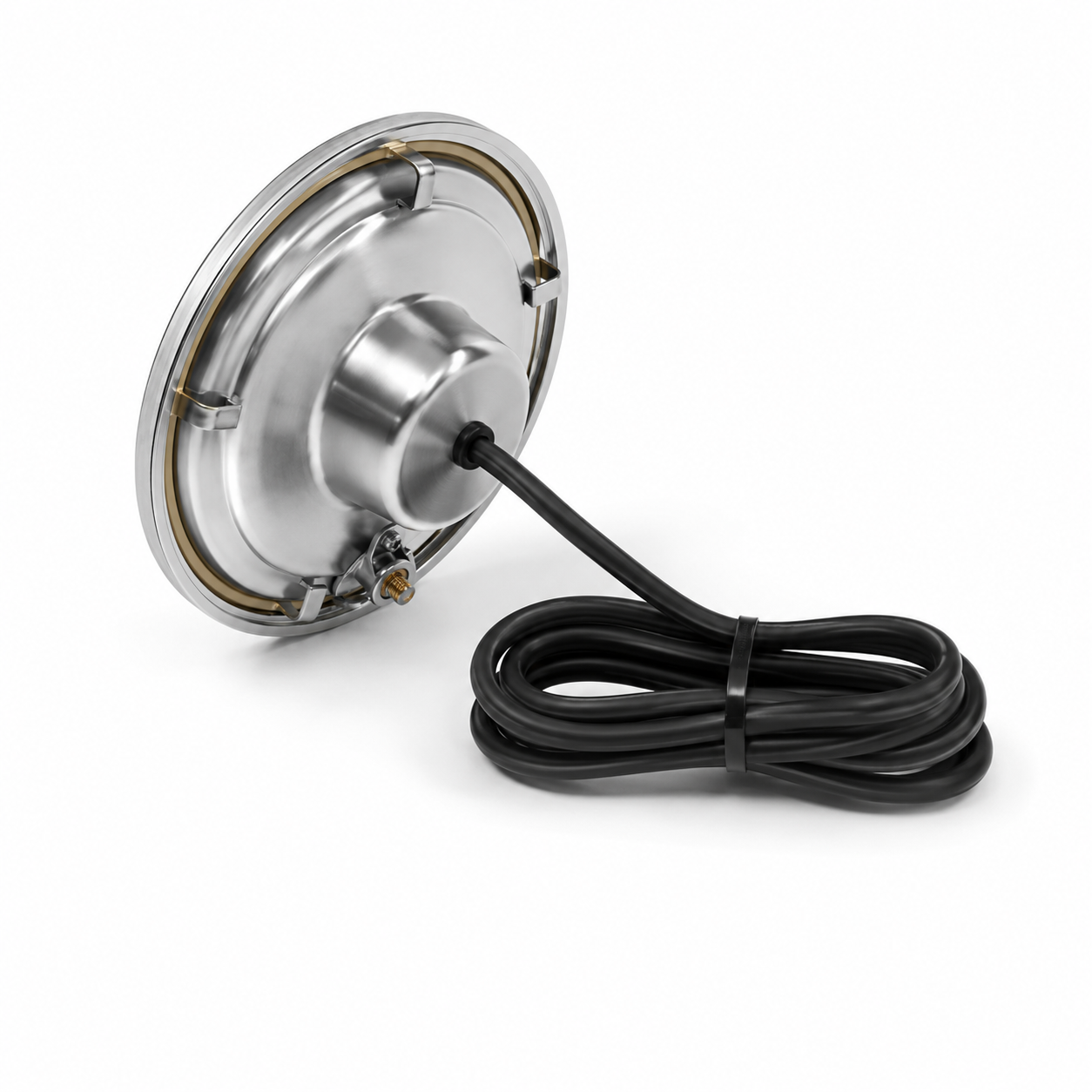

  • Attached Cable

    Your specified length cable will come atttached to the light.

Superior Brightness

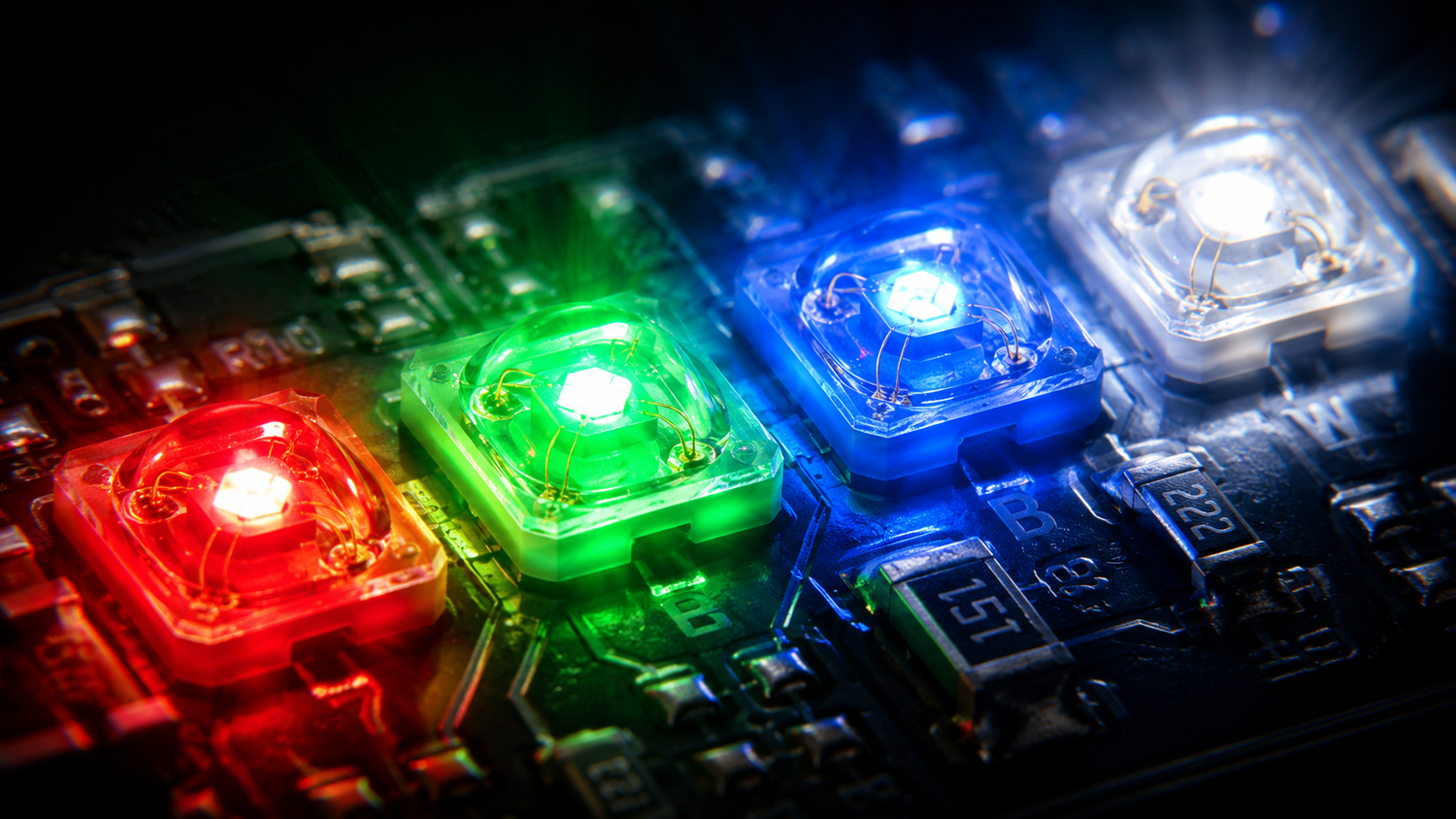

High Output CREE LED

We use the highest grade LED's manufactured by CREE. Others use generic LED's which result in shorter life, lower output, and less radiant colors.

PLD SPECIAL FEATURES

COLORSYNC

Keep the familiar color pattern for your Pentair lights.

ANTI GLARE LENS

No more blinding your pool guests

RESIN FILLED

For maximum durability, our electronics are sealed completely. Feel the difference.

Colorsync

Use your existing Pentair Intellibrite and Easytouch Automation to control the lights, or the familiar color changing pattern with other control methods.

Anti Glare Lens

No glare or hot spots on these lights. Just a smooth, even illumination of the pool

Resin Filled

Our lights are resin filled to prevent cracks and leaks. Competitors keep a hollow body that causes cracking and leaks over time.

Do you have a replacement light for me?

Most likely- yes! Call our client advisors during business hours for a recommendation.

How do I know what light I need?

Use our Light Finder to find the correct match. You can also text a photo of your light for a suggestion.

Why are your lights 1/3 the cost of the brand name version?

Brand name lights get sold from the factory to the OEM, then to the distributor or dealer, and then to the installer. Each step adds 30-50% to the price. By the time you have it installed, the price can be $500-$800 each. We sell direct to you to eliminate those markups.

Are your lights designed better?

Our goal is to use improved testing, design, and technology to provide a product that lasts longer than the original at a fraction of the price.

How are your lights controlled?

Each light has different control options- refer to the product page and there is a compatible controller section to describe how you can activate the lights.

Where are you based at?

Our headquarters is in Florida, and we ship worldwide.

What is your warranty?

Our warranty is 2 years, with optional extended warranties at checkout.

Why do the brand name lights fail after only 1-2 years?

The brand name lights use high power LED's with inadequate cooling and housing protection. Ours are designed to last longer.

What does Resin Filled mean and why is it better?

Low cost lights use a hollow design because its cheaper. This results in air pockets that constantly expand and contract with temperature. This flexing creates micro cracks in the housing that allows water to enter, shorting out the circuit. Our lights use resin to ensure there is no flexing of the material.

How long is shipping?

Our lights are made to order for now. In late 2026 we should have the warehouse stocked up for immediate shipment, but until then you should plan on 7-15 business days for shipping.

How do I install the lights?

We recommend you consult with a qualified pool tech to install. Some customers DIY install with youtube videos.

How long are your cables?

We offer various cable lengths to suit your application. Choose the best cable length at checkout. If you aren't sure, give us a call.
Designed in Florida.

Our lights are meticulously designed in the sunniest, harshest conditions to ensure your new lights will last for years.

Durability First.

Through extreme testing we can be confident of our designs lasting with exposure to constant use and chemical exposure.

Features that customers want.

We talk to pool owners and builders daily, so we can be sure of what the customers are needing on each revision.

  • All Patterns

    12

    Standard Pentair Color sequence

  • Efficient

    87%

    Energy savings

  • Up to

    600

    Lumen (brightness)
