LED Spa Light Upgrade for Pentair SpaBrite, IntelliBrite 5G Spa, SAL - 6 Inch Niche

  • 6 inch LED spa light replacement for Jandy WaterColors, front view
  • 6 inch LED replacement spa light for Jandy WaterColors, angled view
  • Jandy WaterColors compatible 6 inch LED spa light replacement, detail view
  • Nicheless LED replacement light option for Jandy spa retrofits
  • Jandy WaterColors compatible LED replacement spa light, drop-in design
  • Jandy WaterColors compatible LED replacement spa light, alternate angle
Color
Voltage
Cable Length (ft)
Not sure what to select?
$239.00 USD
$239.00 USD $599.00 USD
Shipping calculated at checkout.

Color Sync

Our color changing program matches the Pentair color sequence when using Intellitouch and Easytouch automation systems.

Perfect Fit

Our lights use the standard 10 inch bottom mounting tab and the top screw to fit into your existing niche.

2 Year Warranty

With our ultra durable design, we can offer double the warranty of the big brands.

Anti Glare Lens

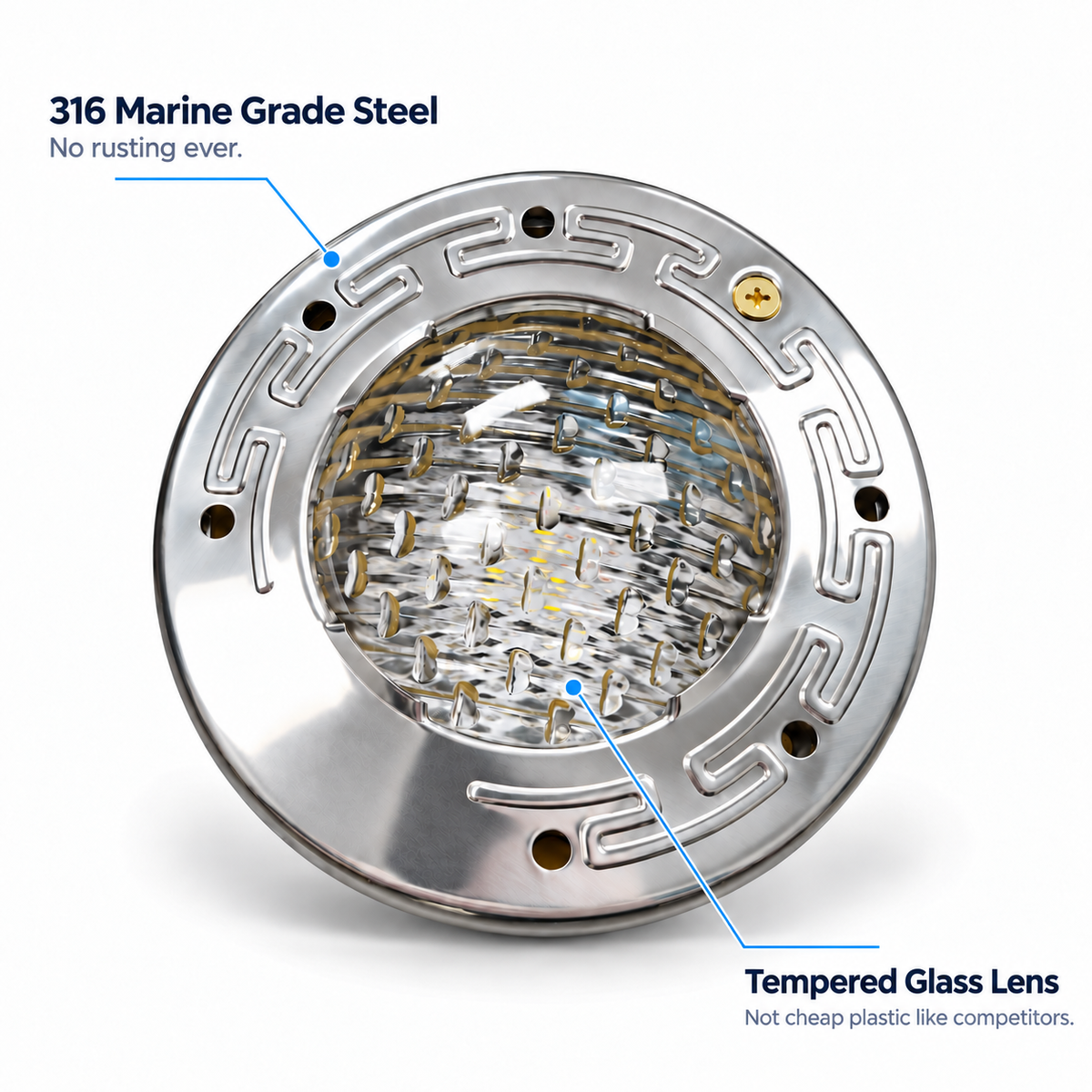

Our specially designed glass fresnel lens directs light to the pool surface, not your eyes.

In stock

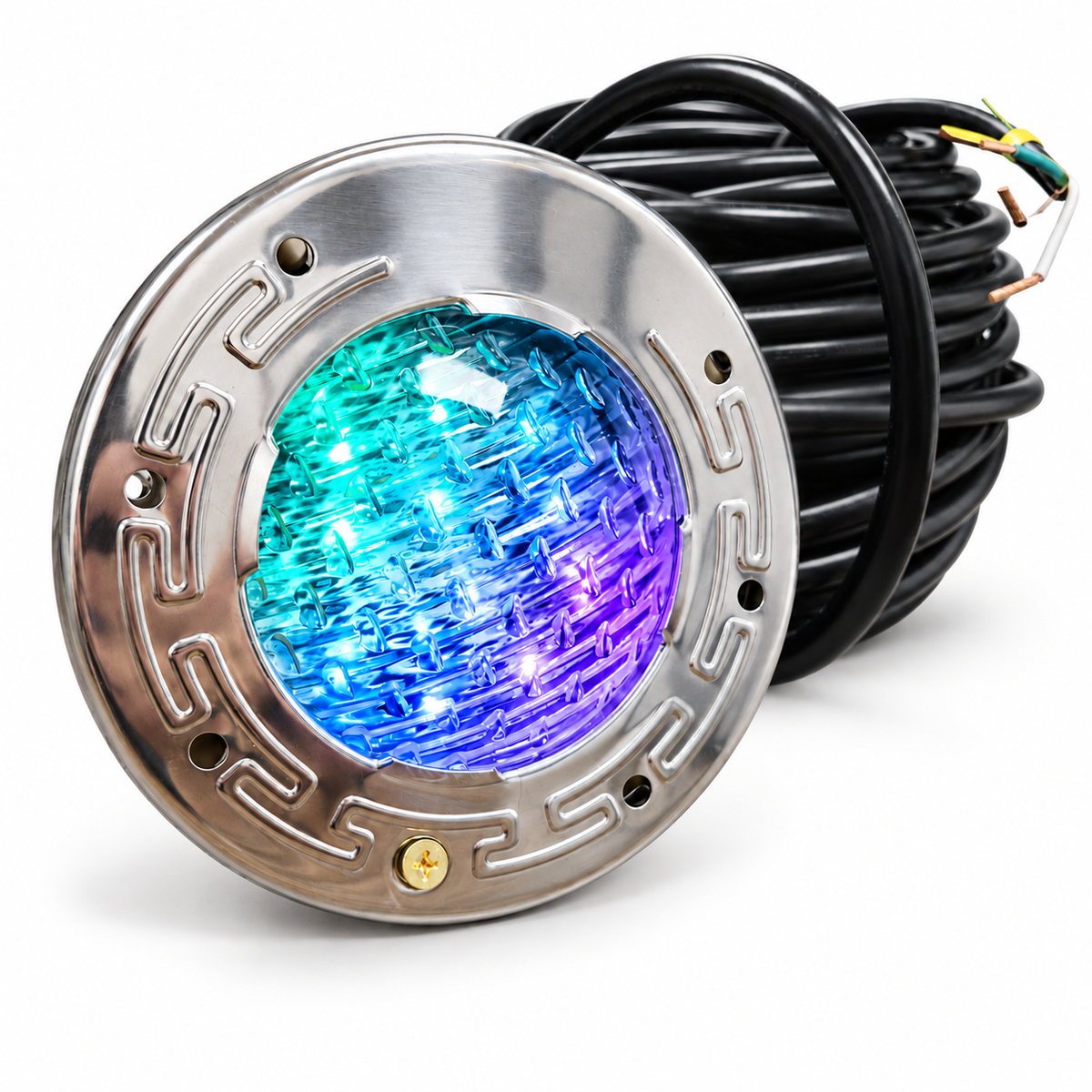

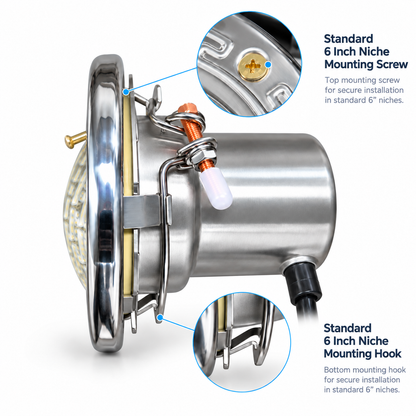

A drop-in 6 inch LED replacement for small spa wet niche lights, including Pentair IntelliBrite spa installs. This light is available in 12V AC and 120V — select your voltage at checkout. The 6 inch spa niche uses the same design as its big 10 inch cousin in a compact housing: a metal cylinder built into the spa wall, an alignment tab at the bottom, and a single securing screw at the top of the ring. This light installs in that same niche and connects at your existing junction box. No spa drain required, and most swaps take about 30 minutes.

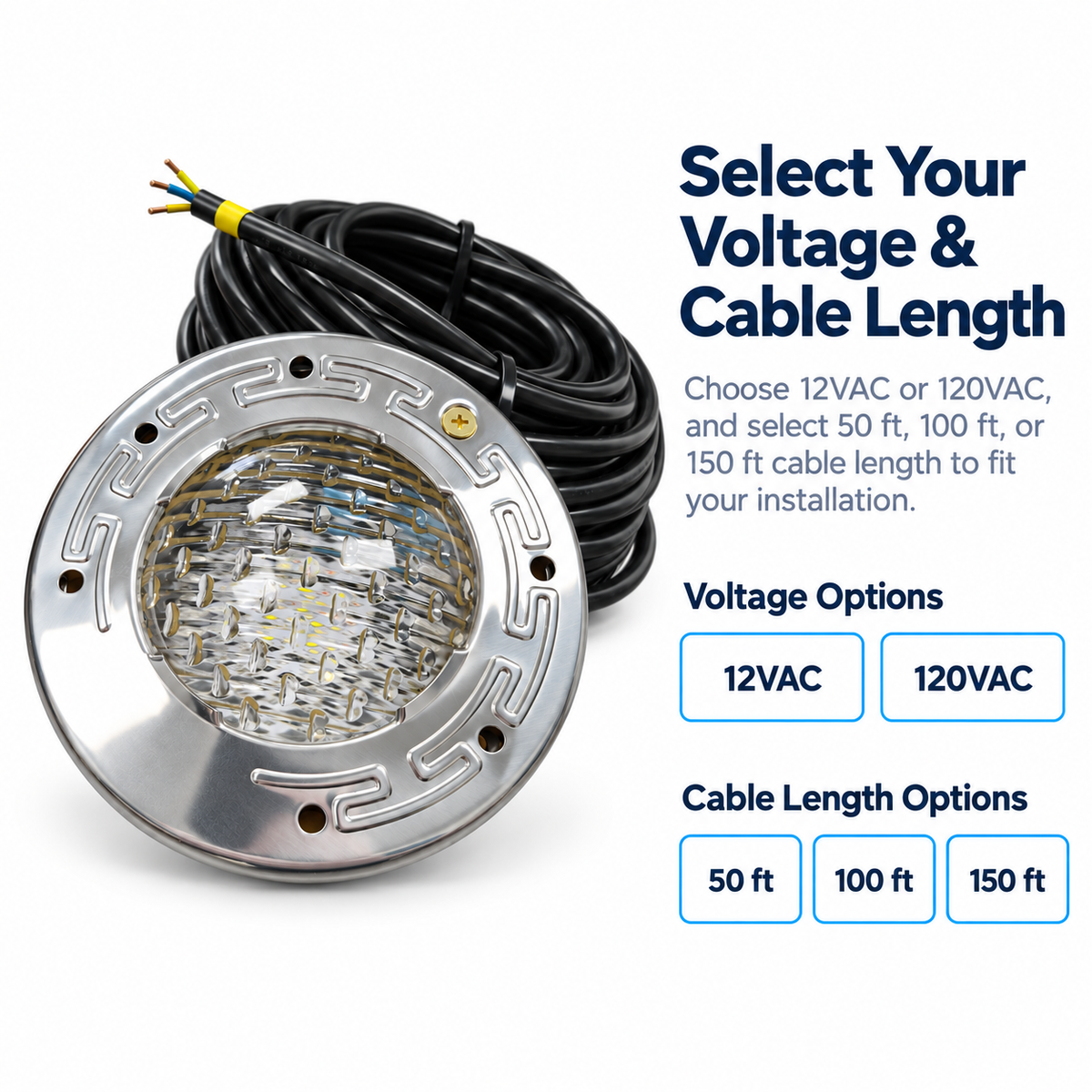

If your existing spa light is a 12V model, choose the 12V option for a direct swap. If your existing fixture is 120V, choose the 120V option and connect directly to your existing circuit — no transformer needed. Not sure which voltage you have? Check the label on your existing light or transformer, or text us a photo and we will confirm.

Full RGB color modes plus clean bright white, from a sealed fixture rated for 50,000 hours. No bulb to change and no lens gasket to reseal, built for the heat and chemistry of spa water.

Built to outlast the original:

  • Perma-seal UV-stabilized housing with no water intrusion path
  • Sealed unit design, so the whole fixture is the replacement part
  • Soft diffuse lens for an even glow with no glare hot spot in a small body of water
  • High-efficiency LED chipset with full RGB color and bright white

Covered by a 2-year warranty against water intrusion and LED failure. Free US shipping. Not sure about fitment or voltage? Text a photo of your spa light to (239) 350-3110 and we will confirm before you order. If it does not fit, send it back for a full refund.

Replaces these 12V spa lights (direct swap — select 12V at checkout): IntelliBrite 5G color spa 12V 640130, 640131, 640132, 640133, 640135, EC-640132. IntelliBrite 5G white spa 12V 640150, 640151, 640152, 640153. Architectural Series white spa 12V 618015, 618016, 618017, 618018. Architectural Series warm white spa 12V 602238, 602239, 602240, 602241. SpaBrite and Spa Amerlite 12V 78101200, 78104200, 78108200, 78107000, 78107500. AquaLight 12V 77181100, 77188100, 77182500. SAL Spectrum AquaLight color 12V 640011, 640012, 640013.

Replaces these 120V spa lights (direct swap — select 120V at checkout): IntelliBrite 5G color spa 120V 640120, 640121, 640122, 640123, 640124, 640125, EC-640122. IntelliBrite 5G white spa 120V 640140, 640141, 640142, 640143, 640144. Architectural Series white spa 120V 602193, 602194, 602195, 602196, 602209. Architectural Series warm white spa 120V 602225, 602226, 602227, 602228, 602229. SpaBrite 120V 78106000, 78106100, 78106200, 78106300, 78106400, 78104100, 78108100, 78107100, 78109100. AquaLight 120V 77111100, 77114100, 77313100, 77310100, 77161100, 77164100, 77168100, 77375100, 77360300, 77365000, 77362000. SAL Spectrum AquaLight color 120V 640001, 640002.

Made in both voltages (check the label on your fixture): IntelliBrite 5G Turtle Edition spa 640172, 640173.

Fits these niche models: Pentair small stainless steel niche for vinyl and fiberglass 78241100, 78241200, 78241300, 78242100, 78242200, 78242300. Pentair small stainless steel niche for concrete and gunite 78243100, 78243200, 78243300, 78244100, 78244200, 78244300. Also fits the Pentair small plastic spa niche used by SpaBrite, AquaLight, SAL, and IntelliBrite 5G spa lights.

Compatible Light Part Numbers

602053

602054

602055

602056

602102

602103

602104

602105
-

618040

Specifications

Lumen Output (Brightness)

35W- 3650 lumens

Cord Length (ft)

50/100/150 Selectable

Colors

RGBW (Others available with customization)

Warranty

2 Year Standard

Voltage

12 VAC / 120VAC Selectable

Light Sequence

Standard Pentair 12 color

LED

SMD 3535 High Output

Power

35W/42W Selectable

Durability

IP68

Certifications

ETL

Controller Options

These lights are 12VAC or 120VAC depending on your selection and can function with several methods to power them.

1. Existing Pentair Automation- They will sync the color modes with your automation controller. Simply remove the old lights and install the new lights.

2. On/off switch- If using a standard on off light switch, the color sequence will change when you turn the lights on rapidly.

Download Installation Manual
LED Spa Light Upgrade for Pentair SpaBrite, IntelliBrite 5G Spa, SAL - 6 Inch Niche

$239.00 USD

10 inch niche Replacement LED Pool / Spa Light for Pentair Intellibrite and others

How do I know if it's compatible?

The 10 inch wet niche is a recessed opening in your pool wall.

It is identified by a top screw that secures the light and a slot at the bottom where a mounting tab will fit into and secure it at the bottom.

Our lights fit into the same niche and use the same mounting style as your removed bulb.

What's in the box?

  • LED Light

    We send the light in your specific power requirement.

  • Installation Tool

    We include a notched installation tool that will tighten to the light.

  • Gasket

    There is a round gasket that will be in the installation bag.

  • Attached Cable

    Your specified length cable will come atttached to the light.

Superior Brightness

High Output CREE LED

We use the highest grade LED's manufactured by CREE. Others use generic LED's which result in shorter life, lower output, and less radiant colors.

PLD SPECIAL FEATURES

COLORSYNC

Keep the familiar color pattern for your Pentair lights.

ANTI GLARE LENS

No more blinding your pool guests

RESIN FILLED

For maximum durability, our electronics are sealed completely. Feel the difference.

Colorsync

Use your existing Pentair Intellibrite and Easytouch Automation to control the lights, or the familiar color changing pattern with other control methods.

Anti Glare Lens

No glare or hot spots on these lights. Just a smooth, even illumination of the pool

Resin Filled

Our lights are resin filled to prevent cracks and leaks. Competitors keep a hollow body that causes cracking and leaks over time.

Do you have a replacement light for me?

Most likely- yes! Call our client advisors during business hours for a recommendation.

How do I know what light I need?

Use our Light Finder to find the correct match. You can also text a photo of your light for a suggestion.

Why are your lights 1/3 the cost of the brand name version?

Brand name lights get sold from the factory to the OEM, then to the distributor or dealer, and then to the installer. Each step adds 30-50% to the price. By the time you have it installed, the price can be $500-$800 each. We sell direct to you to eliminate those markups.

Are your lights designed better?

Our goal is to use improved testing, design, and technology to provide a product that lasts longer than the original at a fraction of the price.

How are your lights controlled?

Each light has different control options- refer to the product page and there is a compatible controller section to describe how you can activate the lights.

Where are you based at?

Our headquarters is in Florida, and we ship worldwide.

What is your warranty?

Our warranty is 2 years, with optional extended warranties at checkout.

Why do the brand name lights fail after only 1-2 years?

The brand name lights use high power LED's with inadequate cooling and housing protection. Ours are designed to last longer.

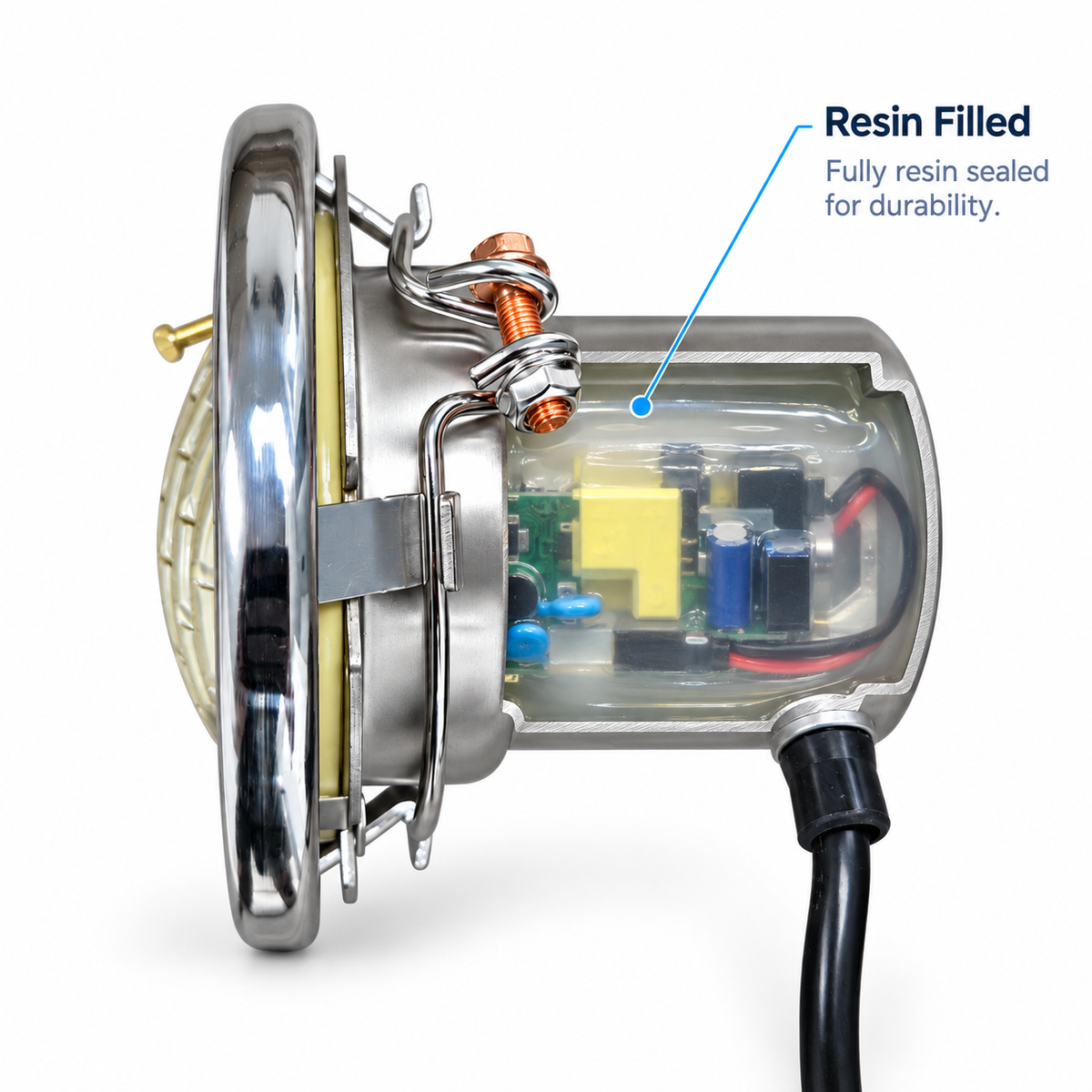

What does Resin Filled mean and why is it better?

Low cost lights use a hollow design because its cheaper. This results in air pockets that constantly expand and contract with temperature. This flexing creates micro cracks in the housing that allows water to enter, shorting out the circuit. Our lights use resin to ensure there is no flexing of the material.

How long is shipping?

Our lights are made to order for now. In late 2026 we should have the warehouse stocked up for immediate shipment, but until then you should plan on 7-15 business days for shipping.

How do I install the lights?

We recommend you consult with a qualified pool tech to install. Some customers DIY install with youtube videos.

How long are your cables?

We offer various cable lengths to suit your application. Choose the best cable length at checkout. If you aren't sure, give us a call.
Designed in Florida.

Our lights are meticulously designed in the sunniest, harshest conditions to ensure your new lights will last for years.

Durability First.

Through extreme testing we can be confident of our designs lasting with exposure to constant use and chemical exposure.

Features that customers want.

We talk to pool owners and builders daily, so we can be sure of what the customers are needing on each revision.

  • All Patterns

    12

    Standard Pentair Color sequence

  • Efficient

    87%

    Energy savings

  • Up to

    600

    Lumen (brightness)
