Pool Light Tripping the GFCI: How to Diagnose and Fix
A pool light tripping the GFCI is a safety signal, not an annoyance. Four root causes drive almost every pool light GFCI trip. Here's how to diagnose which one is yours, and how to fix it safely.
Why this matters more than other pool light issues

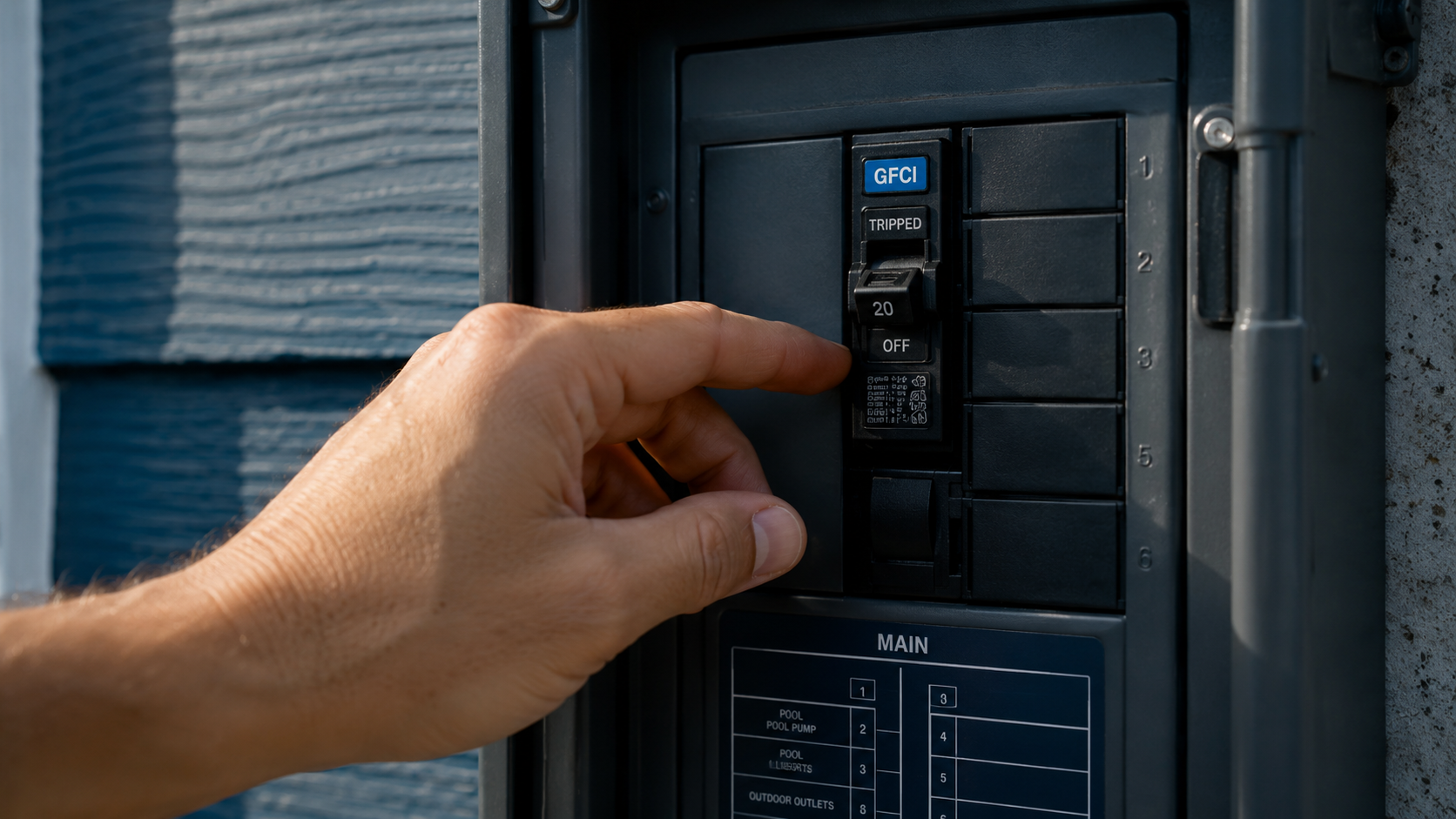

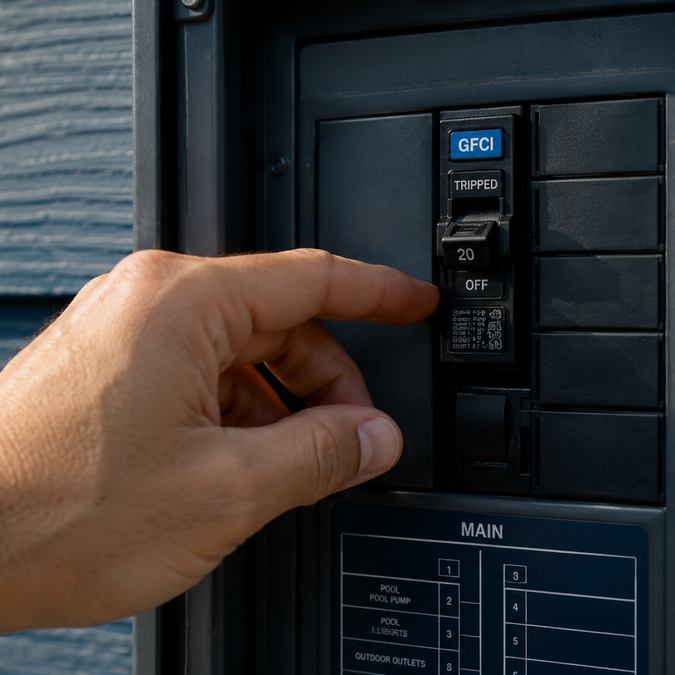

A GFCI breaker exists to protect you from electric shock. When it trips on your pool light circuit, the breaker has detected a difference between the current flowing out to the load and the current returning. That difference means electricity is escaping somewhere it shouldn't go: through water, through ground, or potentially through a person.
This is not a nuisance trip. The GFCI is doing exactly what it's designed to do. The right response is to figure out where the leakage path is and fix it before resetting the breaker.
The 4 root causes of pool light GFCI trips
1. Water inside the light fixture
The most common cause. A seal has failed (cable entry, lens, or housing seam) and water has reached the electrical contacts inside the light. Each time you energize the circuit, current leaks through the water to ground, and the GFCI catches it.
2. Damaged cable insulation
The pool light cable runs through conduit from the niche to the junction box. If the cable insulation is cracked, abraded, or rodent-damaged, exposed conductor can short to the conduit or to ground. Often shows up after a landscaping project disturbed the conduit path.
3. Wet junction box
The junction box for pool lights is supposed to be sealed against moisture. If the seal failed or the box was never properly waterproofed, rain and ground moisture can reach the wire connections and create the same ground fault path.
4. Faulty GFCI breaker itself
GFCI breakers wear out. After 10 to 15 years a GFCI can start tripping spuriously without a real fault, or fail to trip when it should. Less common than the other three, but worth testing if everything else checks out clean.
How to diagnose which one is yours
You can isolate the cause without a multimeter. The test pattern is to disconnect components one by one and see which removal stops the trip.
Turn off the breaker, open the junction box
Locate the pool light junction box (typically 8 to 12 feet from the pool, deck side). Open the cover. Look for visible water, corrosion, or burnt insulation. Photograph for reference.
Disconnect the pool light cable from the supply wiring
Untwist the wire nuts. Cap the supply wires individually with new wire nuts so they don't touch each other. Leave the pool light cable disconnected.
Reset the GFCI and flip the breaker on
With the pool light disconnected, energize the circuit. Does the GFCI hold?
If yes (GFCI holds): The fault is in the pool light fixture or its cable. Continue to step 4.
If no (GFCI still trips): The fault is in the supply wiring, junction box moisture, or the GFCI breaker itself. Skip to step 6.
Pull the pool light at the deck and inspect
With the breaker off, unscrew and remove the pool light. Inspect the fixture for visible water inside, cracked lens, burnt smell, or corrosion on the wire terminals. Any of these confirm water intrusion as the root cause.
Check the cable for damage
Run your hand along the cable from light to junction box. Feel for cuts, nicks, or abrasions. Particularly check where the cable enters the conduit at the deck and at the junction box. Damaged insulation in these spots causes intermittent trips that look exactly like a failed light.
Inspect the junction box wiring closely
With the breaker off and pool light still disconnected, look at the supply wires and the inside of the junction box. Any visible moisture, corrosion, or burnt areas means the issue is on the house side of the circuit and probably calls for an electrician.
Test the GFCI breaker
If everything else looks clean and the GFCI still trips with nothing connected, the breaker itself may be defective. Hit the test button on the breaker face. It should trip immediately. If it doesn't, the breaker is failed and needs to be replaced.
How to fix each root cause
Water inside the fixture. The light is finished. Replace it. Resealing an already-flooded light usually fails within weeks because the seal compounds inside are now waterlogged. A drop-in LED replacement gets you back online in 30 minutes.
Damaged cable insulation. If the damage is in an exposed section, you can sometimes splice in a repair section with waterproof connectors rated for direct burial. If the damage is inside conduit, the cleaner fix is to replace the whole pool light. The new fixture comes with new cable, which you pull through during the swap.
Wet junction box. This is electrical work. Either the box seal needs replacement or the box itself needs to be upgraded to a properly-sealed pool-rated enclosure. Call an electrician.
Faulty GFCI breaker. Replace the GFCI breaker with a new one of the same amperage rating. This is electrical panel work. Call an electrician if you're not comfortable working inside a live panel.
Why our lights stop tripping for good
When the GFCI trip traces back to water inside the fixture (the most common cause), a Pool Lights Direct replacement solves it permanently.
Frequently asked questions
Can I just reset the GFCI and keep using the light?
Not safely. The GFCI is tripping because it's detecting current leaking somewhere it shouldn't. If you reset and the light works for a while, the underlying fault is still there. The GFCI just hasn't seen it again yet. The next trip could be when someone is in the water. Diagnose and fix the root cause.
How often should pool light GFCIs be tested?
Monthly. Hit the test button on the GFCI breaker face and confirm it trips. If it doesn't, replace the breaker. This applies to all GFCIs in your house, not just the pool circuit.
Is it safe to swim if the GFCI is tripping?
Only if you've isolated the fault and confirmed the rest of the circuit is intact. If the GFCI is tripping and you don't know why, keep people out of the pool until you've diagnosed the cause. The fault path that's tripping the GFCI is the same path that could route current through a swimmer.
My breaker isn't a GFCI but the pool light still trips it. What's happening?
That's actually an overcurrent trip, not a ground fault trip. Usually a short circuit inside the failed light or the cable. Either way the fix is the same: replace the light. If the new light also trips the breaker, the fault is in the wiring, not the fixture.
Will replacing the pool light always fix GFCI tripping?
If the root cause is water intrusion into the old fixture, yes. If the root cause is damaged cable insulation, a wet junction box, or a failed GFCI breaker, replacing the light won't help. The diagnostic steps above isolate which one you're dealing with before you spend money on the wrong fix.
