12V vs 120V Pool Lights: Which One You Have and Why It Matters

Every inground pool light runs on one of two electrical systems: 120V line voltage straight from the panel, or 12V low voltage stepped down through a transformer. Knowing which one your pool has matters for two reasons. It determines which replacement lights you can order, and it explains that gray box near your equipment pad that you may never have thought about. Here is the difference, how to tell which you have, and what it means for an LED upgrade.

The Two Systems

120V systems feed the light directly from a dedicated, GFCI protected circuit. This was the standard approach for decades, and the classic 300W and 500W incandescent fixtures like the Pentair Amerlite and Hayward AstroLite commonly run this way. It works, but it puts line voltage at the fixture, which is why code requirements around bonding, grounding, and GFCI protection for these circuits are strict.

12V systems put a transformer between the panel and the light. The transformer steps 120V down to 12V AC before it ever reaches the pool, so the voltage present at the fixture is dramatically lower. Many newer pools and most modern nicheless lights, including the 1.5 inch formats used by Pentair MicroBrite and GloBrite, Hayward ColorLogic, and Jandy WaterColors, run on 12V AC. Low voltage systems have become the default in much of new construction for exactly this safety logic.

How to Tell Which One You Have

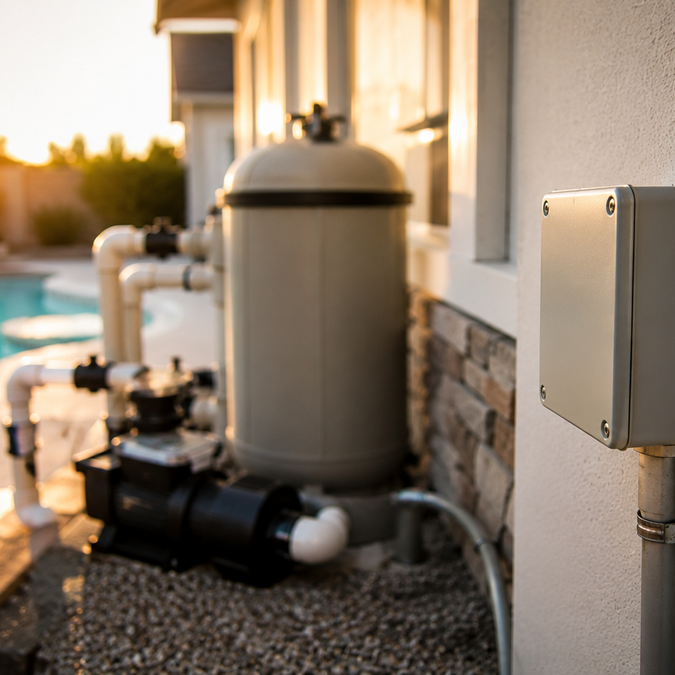

Three places give you the answer. First, the equipment pad: a transformer box between the breaker and the light circuit means 12V. Second, the light's label or paperwork: the voltage is printed on the fixture sticker and in any manual you still have. Third, the fixture format itself is a strong hint, since small 1.5 inch nicheless lights are typically 12V while classic large incandescent fixtures are frequently 120V. If none of those settle it, a licensed electrician can confirm at the junction box in minutes, and that is money well spent before ordering anything.

Where the Transformer Becomes an Upgrade

On a 12V system, the transformer is more than a voltage converter. It is the natural control point for everything the lights do. A basic transformer just steps voltage down. A smart transformer adds scheduling, dimming, color control, and app or voice operation for the whole light circuit, without touching the lights themselves.

That is exactly what our Smart WiFi Pool Light Transformer and Controller does: selectable 100W, 150W, or 300W output for 12V AC RGB pool lights, an IP65 weatherproof housing, and control through the Tuya app, Alexa, Google, or the included remote. If your pool runs 12V lights, it turns the gray box at the equipment pad into the smartest part of the system. Pair it with the color modes on our LED replacements and the whole backyard runs from your phone.

And if you are still on a 120V incandescent fixture, the upgrade conversation starts one step earlier, with the light itself. We covered that decision in Pool Light Burned Out? Replace It with LED Instead of Another Bulb and the running costs in What Your Pool Light Costs to Run.
