Pentair Amerlite LED Replacement: The Complete Upgrade Guide

If your pool was built in the last several decades and has a big round light about 10 inches across, there is a strong chance you are looking at a Pentair Amerlite or one of its close relatives. It is one of the most widely installed pool lights in America, and it is also the fixture we hear about most from owners tired of feeding it 300W and 500W incandescent bulbs. This guide covers how to confirm what you have and what the LED conversion involves.

Identifying the Amerlite Format

Three visual checks identify the format from the deck. First, the size: the fixture face is roughly 10 inches across with a stainless trim ring. Second, the screw: a single brass pilot screw sits at the very top of the ring, at the 12 o'clock position. Third, the ring hooks into the niche with a tab at the bottom, which is why the fixture tilts out from the top once that one screw is removed.

Behind the fixture is the niche itself, the stainless housing built into the pool wall. Standard Pentair large niches carry part numbers in the 78210400 series (78210400, 78210500, 78210600, and 78210700, which differ by hub size and position), with a 10 inch inside diameter opening and an 11-1/2 inch flange. The classic 120V 500W Amerlite light itself commonly appears under part numbers like EC602128. If you can read a sticker or stamped number on your fixture or paperwork, those numbers confirm the format instantly.

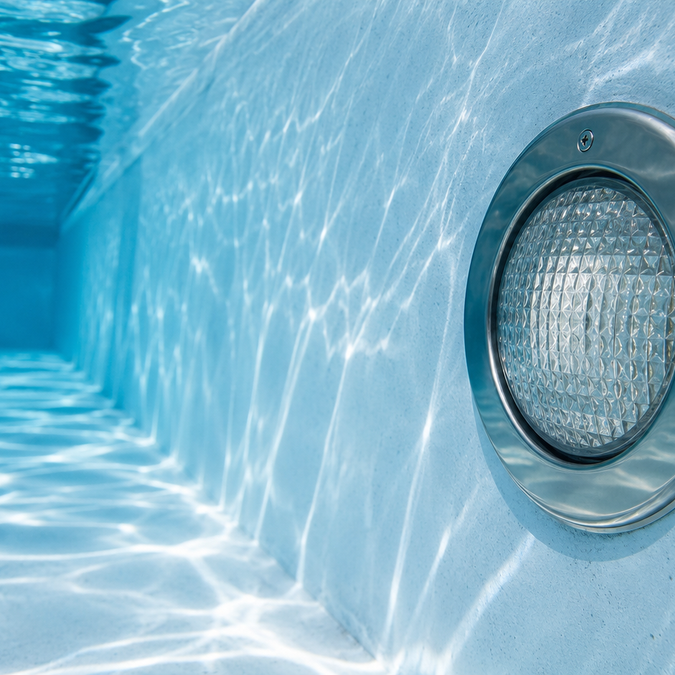

The standard large wet niche: 10 in. opening, 11-1/2 in. flange, securing screw at top, mounting tab at the bottom.

Why the Incandescent Version Wears You Down

The original design runs a large incandescent flood bulb behind a glass lens, sealed with a gasket. Incandescent bulbs have been known to last only one to three swim seasons of nightly use, and the heat they generate tends to age the lens gasket right along with the filament. Each bulb change means opening the sealed lens, replacing the gasket, and resealing, and a reseal that does not seat perfectly lets water reach the lamp socket. Many owners end up on a permanent rotation of bulbs, gaskets, and crossed fingers.

We ran the season-by-season cost comparison in Pool Light Burned Out? Replace It with LED Instead of Another Bulb. The short version: between electricity and hardware, the incandescent Amerlite typically costs more to keep alive for two seasons than an LED conversion costs once.

The LED Conversion Path

Because the large niche is a standardized format, the cleanest fix is a complete sealed LED fixture that drops into the same niche your Amerlite occupies today. Our 10 inch LED replacement installs in the same opening, secures with the same screw-at-top pattern, and connects at the same junction box. There is no bulb inside it to change and no lens gasket ritual, because the fixture is a sealed unit rated for 50,000 hours, drawing a fraction of the power while adding full RGB color modes and a clean bright white.

One electrical note: our 10 inch LED replacement runs on 12V AC, while the classic Amerlite is typically a 120V fixture. The conversion therefore includes adding a compact 12V transformer at the equipment pad, a quick job for the electrician who is already handling the junction box connection, and modern pool safety practice favors 12V at the fixture anyway. Our Smart WiFi Pool Light Transformer covers it and adds app, voice, and remote control of your pool light at the same time.

The swap itself follows the standard no-drain procedure: power off at the breaker, remove the pilot screw, tilt the fixture out and float it to the deck, disconnect at the junction box, pull the new cable through, connect, and reinstall. The pool stays full the entire time, which we covered step by step in Can You Replace a Pool Light Without Draining the Pool? As always, if the junction box wiring is unfamiliar territory, that one step belongs to a licensed electrician.
