How to Replace a Pool Light Without Draining Your Pool
You don't need to drain your pool to replace a pool light. The entire job is done from the deck in about 30 minutes. Here's exactly how it works, what tools you need, and what to watch out for.
Why you don't need to drain the pool
Pool lights are designed to be serviced without draining. The fixture screws into a niche in the pool wall, and there's a service loop of extra cable coiled inside the niche. That extra cable lets you pull the light up to the deck, work on it at water level, and reinstall it without ever getting in the water or touching the pool level.
The niche itself is sealed to the pool shell. Water doesn't flow through it. The only thing connecting the light to the outside world is the cable, which runs through a conduit to the junction box at the equipment pad. As long as you don't cut or disconnect the cable, the pool stays sealed.
What you need
Tools
Flathead screwdriver (to pop the trim ring). Phillips screwdriver (for the niche screw). Wire stripper and connectors if you're splicing. Electrical tape. That's it.
Replacement light
A drop-in replacement matched to your existing niche. Pool Lights Direct replacements fit Pentair, Hayward, and Jandy 1.5" niches without any niche modification.
Step-by-step: the full replacement
Switch off the breaker
At the main panel. Confirm off by trying to turn the light on at the switch. Leave the breaker off for the entire job.
Remove the trim ring
Use a flathead screwdriver to pop the decorative trim ring off the face of the niche. Set it aside.
Unscrew the niche screw
There's a single Phillips screw at the top of the light fixture holding it into the niche. Remove it and set it aside.

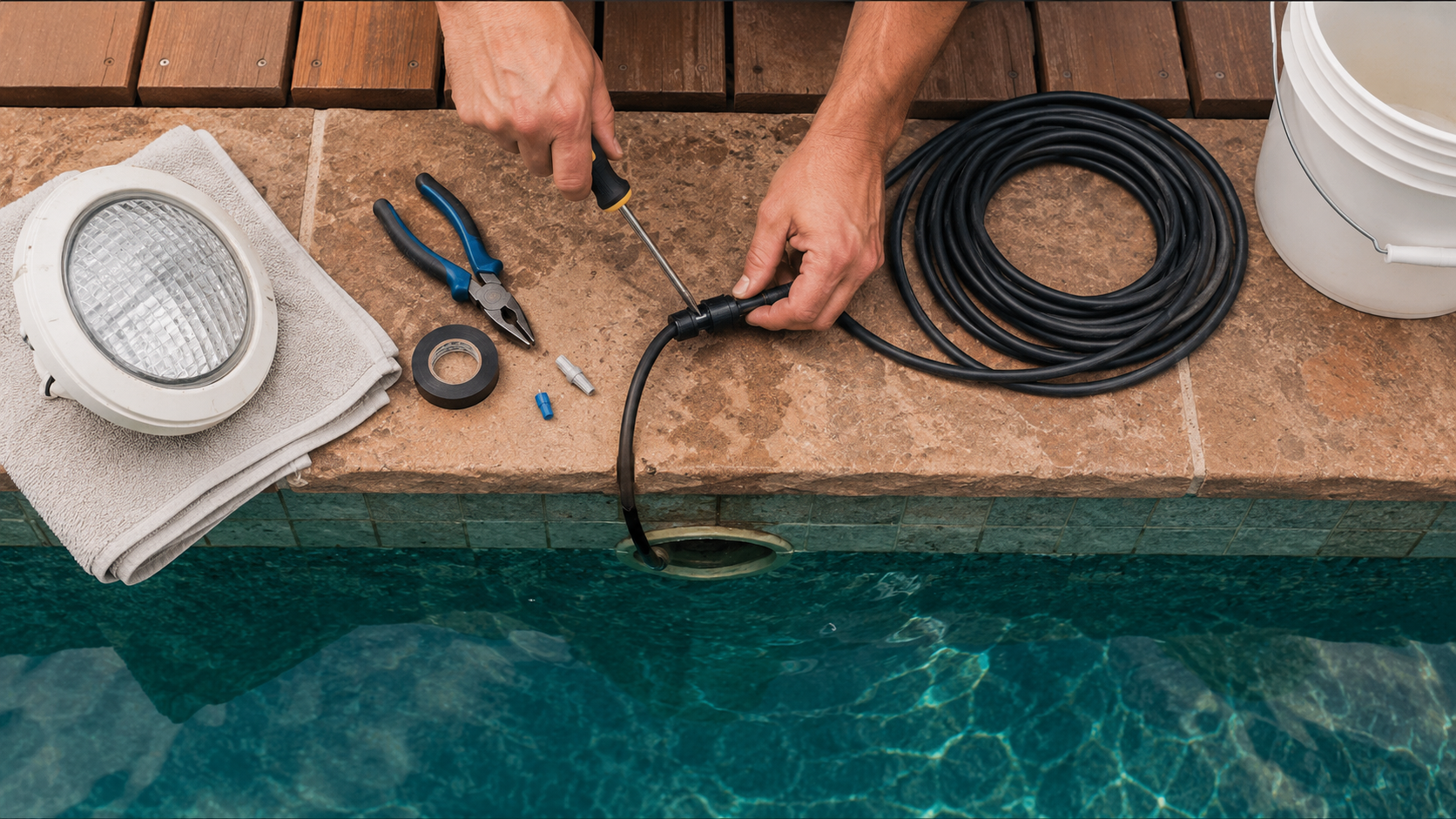

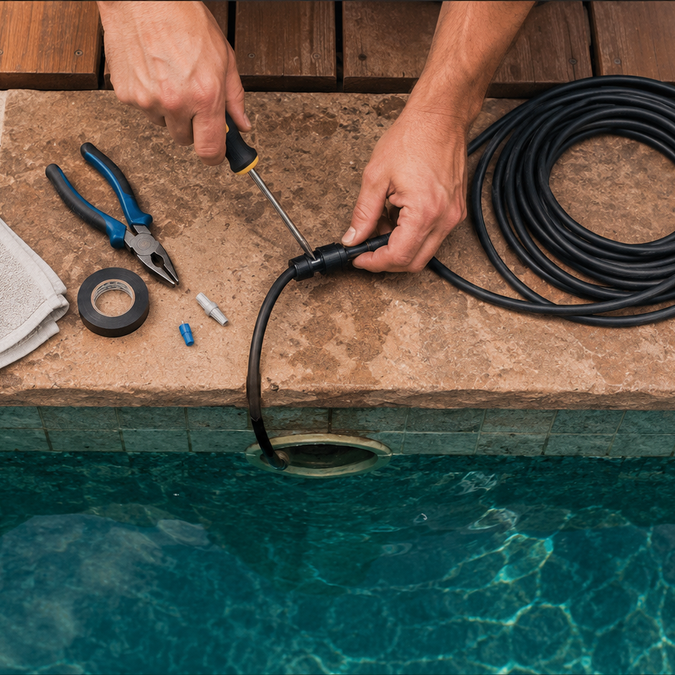

Pull the light to the deck
Gently pull the fixture out of the niche. The service loop cable will unspool from inside the niche as you pull. You'll have 3 to 6 feet of cable to work with. Lay the fixture on the deck next to the pool.
Disconnect the old fixture
The cable connects to the fixture via wire nuts inside the junction at the back of the light. Unscrew the wire nuts and separate the wires. Note which wire is which before disconnecting.
Connect the new fixture
Match wire to wire on the new fixture. Twist on the wire nuts. Tug each connection to confirm it's secure. Wrap with electrical tape if desired.
Feed the cable back into the niche
Coil the service loop cable and push it back into the niche cavity. The cable should sit behind the fixture, not pinched between the fixture and the niche wall.
Seat the fixture and reinstall the screw
Press the fixture into the niche until it seats flush. Reinstall the niche screw at the top. Reinstall the trim ring.
Restore power and test
Switch the breaker back on. Turn the light on at the switch. Confirm it illuminates and cycles through color modes if applicable.
Common mistakes to avoid
Pinching the cable
If the service loop cable gets pinched between the fixture and the niche wall, it can damage the insulation over time. Make sure the cable is fully coiled inside the niche cavity before seating the fixture.
Cross-threading the niche screw
The niche screw threads into plastic. Start it by hand and confirm it's threading straight before applying torque. Cross-threading strips the niche and makes future service harder.
Skipping the tug test
After connecting the wire nuts, tug each wire individually. A properly seated wire nut won't let the wire pull free. If it does, reconnect it before proceeding.
Working with the breaker live
Pool lights run on 12VAC, which is low voltage, but the transformer and wiring upstream are line voltage. Always confirm the breaker is off before touching any wiring.
Why drop-in replacements make this easier
Pool Lights Direct replacements are designed specifically for the 30-minute DIY install. They fit the existing 1.5" niche without modification, use the same wiring connections as the original fixture, and include everything needed for the install in the box.
Frequently asked questions
Do I need an electrician to replace a pool light?
In most states, replacing a pool light fixture is considered a like-for-like appliance replacement and does not require a licensed electrician. You're not modifying the wiring, just disconnecting and reconnecting at the fixture. Check your local code if you're unsure, but the vast majority of homeowners do this themselves without a permit.
What if my service loop cable isn't long enough to reach the deck?
If the cable won't reach the deck, it may have been cut short during a previous service, or the niche may be positioned unusually deep. In this case you'll need to work at water level rather than on the deck. The replacement process is the same, just done poolside rather than on dry ground.
Can I replace a Pentair light with a Hayward replacement or vice versa?
No. Pool light replacements are niche-specific. A Pentair 1.5" niche requires a Pentair-compatible replacement. A Hayward 1.5" niche requires a Hayward-compatible replacement. Pool Lights Direct makes separate replacements for each brand's niche geometry.
How do I know if my niche is 1.5" or a different size?
The niche size refers to the conduit fitting, not the overall fixture diameter. Most residential pool lights installed after 2000 use a 1.5" niche. If you have the original fixture, check the label on the back. If not, measure the conduit fitting at the back of the niche opening.
