LED Pool Light Replacement for Hayward ColorLogic 1.5 Inch
6W / 50
$149.00
Sale price
$149.00
Regular price
$599.00
Skip to product information
5 left

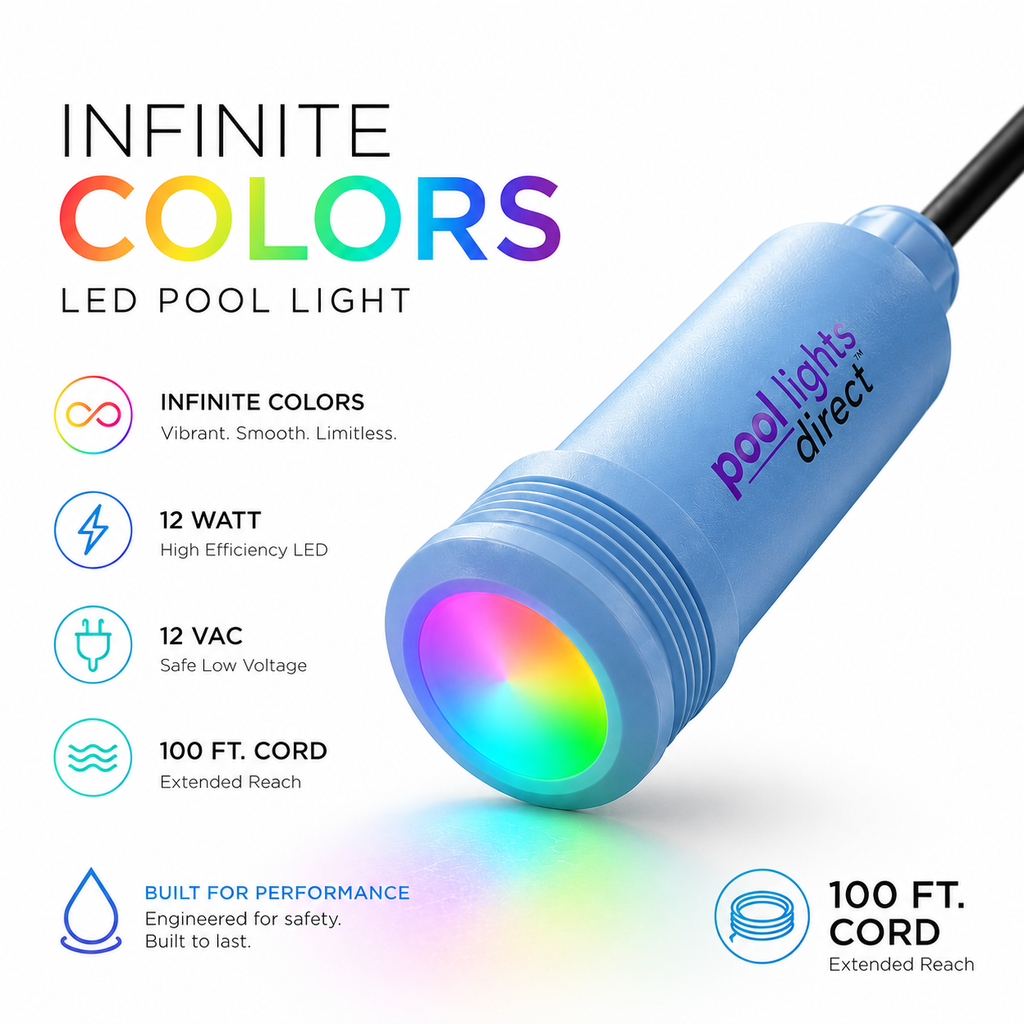

LED Pool Light Replacement for Hayward ColorLogic 1.5 Inch
$149.00
Sale price
$149.00
Regular price
$599.00
✓ Free US shipping, ships same business day
✓ 2-year warranty against water intrusion and LED failure
✓ Fits or full refund. No restocking fee.
A drop-in LED replacement for Hayward ColorLogic pool and spa lights. It threads directly into the standard 1.5 inch nicheless fitting and runs on 12VAC, so it installs exactly like the original ColorLogic light. No pool drain required.
Choose your brightness and cable length at checkout. Select 6W for steps, benches, spas, and smaller pools, or 12W for full-size pools and maximum output. Then pick a 50, 100, or 150 ft cable to reach from your niche to the junction box. Between the two brightness levels and three cable lengths, there is a match across the ColorLogic 320, ColorLogic 160, and CrystaLogic lineup, in both the original and W3 part numbers.
Built to outlast the original:
- Soft glow diffuser for even lighting with no hot spots
- Perma-seal housing engineered against the water intrusion that ends most pool lights
- High-efficiency LED chipset that runs cool for years of operation
- Liquid heat-transfer cooling for sustained brightness
- Thin-jacket cable that pulls easily through tight conduit without binding
- 13 RGB color modes for vivid, programmable lighting
Covered by a 2-year warranty against water intrusion and LED failure. Free US shipping with same business day dispatch before 2pm ET. 150 ft cable orders ship within 5 to 7 business days.
6W/12W
Brightness
12V
AC
50–150 ft
Cord
RGB color
High-efficiency LED
Perma-seal housing
Free US shipping
Ships same business day
Fitment guarantee
Fits or we refund
2-year warranty
Water intrusion + LED failure
US-based support
Real humans, not chatbots
How to choose
Pick the right brightness and cable length
Two decisions, both quick. Use the guide below to match your pool's setup.
Brightness
How bright do you need it?
6W
Smaller pools and spas
Best for pools under 25 ft, spas, water features, or replacing a lower-wattage OE light. Plenty of brightness for accent and ambient use.
12W
Standard residential
Best for full-size residential pools, deeper pools, or when you want maximum brightness. Matches or exceeds OE 12W outputs.
Cable length
How long does your cable run?
50 ft
Short runs
Spa lights, small pools, or junction box close to the niche. Most spa retrofits.
100 ft
Most common
Standard residential pool. Junction box at the equipment pad. The default for most retrofit jobs.
150 ft
Long runs (custom order)
Large pools, complex conduit routing, or junction box far from the niche. Custom order, ships in 5 to 7 business days.
Pro tip: The easiest way to match cable length is to check the part number on your existing Hayward light. LACUS11100 ends in 100, meaning 100 ft. LYWUS11050 ends in 50, meaning 50 ft.
Fitment guide
Compatible with these Hayward 1.5″ pool lights
Match your existing Hayward 1.5″ nicheless light's model and part number with the list below. If yours isn't here, send us a photo and we'll confirm.
Hayward ColorLogic 320
Compatible models
1.5″ nicheless, color, all cable lengths
Part numbers
LACUS11030, LACUS11050, LACUS11100, LACUS11150 (and W3 versions)
Hayward ColorLogic 160
Compatible models
1.5″ nicheless, color, all cable lengths
Part numbers
LYCUS11030, LYCUS11050, LYCUS11100, LYCUS11150 (and W3 versions)
Hayward CrystaLogic White
Compatible models
1.5″ nicheless white upgrade
Part numbers
LAWUS, LYWUS series (see full compatibility list below)
Don't see your part number? Send us a photo of your old light and we'll confirm fitment before you order.
Full compatibility list
Every Hayward 1.5″ part number we replace
Find your exact part number from the sticker on your existing Hayward light. We make direct drop-in replacements for every Hayward 1.5″ nicheless model in 30, 50, and 100 ft cable lengths. 150 ft cable models are available by custom order. 10″ large-niche replacements are coming soon.
✓ Direct drop-in replacement
Our most common Hayward replacement. ColorLogic 320 (high-output) and 160 (landscape-output) are both 1.5″ nicheless lights with the same install geometry as ours. Pre-2019 and W3-rebrand part numbers are functionally identical — your existing light may carry either prefix depending on when it was manufactured.
ColorLogic 320 — Color (Standard Switched)
| Pre-2019 PN | W3 PN | Cable |
|---|---|---|
LACUS11030 | W3LACUS11030 | 30 ft |
LACUS11050 | W3LACUS11050 | 50 ft |
LACUS11100 | W3LACUS11100 | 100 ft |
LACUS11150 | W3LACUS11150 | 150 ft (custom order) |
ColorLogic 320 — Color (Networked / ProLogic)
| Pre-2019 PN | W3 PN | Cable |
|---|---|---|
LACUN11030 | W3LACUN11030 | 30 ft |
LACUN11050 | W3LACUN11050 | 50 ft |
LACUN11100 | W3LACUN11100 | 100 ft |
ColorLogic 160 — Color (Standard Switched)
| Pre-2019 PN | W3 PN | Cable |
|---|---|---|
LYCUS11030 | W3LYCUS11030 | 30 ft |
LYCUS11050 | W3LYCUS11050 | 50 ft |
LYCUS11100 | W3LYCUS11100 | 100 ft |
LYCUS11150 | W3LYCUS11150 | 150 ft (custom order) |
ColorLogic 160 — Color (Networked)
| Pre-2019 PN | W3 PN | Cable |
|---|---|---|
LYCUN11030 | W3LYCUN11030 | 30 ft |
LYCUN11050 | W3LYCUN11050 | 50 ft |
LYCUN11100 | W3LYCUN11100 | 100 ft |
✓ Direct drop-in replacement
Direct upgrade from Hayward CrystaLogic white-only lights to our RGBW color-changing light. Same 1.5″ niche, same install, same 12VAC. Most customers replacing a white CrystaLogic at end-of-life take the opportunity to step up to color.
CrystaLogic 320 — White
| Pre-2019 PN | W3 PN | Cable |
|---|---|---|
LAWUS11030 | W3LAWUS11030 | 30 ft |
LAWUS11050 | W3LAWUS11050 | 50 ft |
LAWUS11100 | W3LAWUS11100 | 100 ft |
LAWUS11150 | W3LAWUS11150 | 150 ft (custom order) |
CrystaLogic 160 — White
| Pre-2019 PN | W3 PN | Cable |
|---|---|---|
LYWUS11030 | W3LYWUS11030 | 30 ft |
LYWUS11050 | W3LYWUS11050 | 50 ft |
LYWUS11100 | W3LYWUS11100 | 100 ft |
LYWUS11150 | W3LYWUS11150 | 150 ft (custom order) |
Accessories commonly searched alongside
LFGUY1000,LGGUY1000— plastic 1.5″ nicheLKBUN1000— cable couplerLTBUY11300— transformer
✓ Cross-reference equivalent
Customers replacing aftermarket Hayward-compatible 1.5″ nicheless lights from these brands can use our light as a direct cross-reference. Same 1.5″ niche fitment, same 12VAC operation, same drop-in install.
J&J Electronics ColorSplash VÜ (Hayward-owned since 2022)
| PN | Item # | Type | Cable |
|---|---|---|---|
LPL-R1CW-12-30/50/100 | — | ColorSplash VÜ RGB-W, 8W | 30–100 ft |
LPL-R1CW-12-150 | — | ColorSplash VÜ RGB-W, 8W | 150 ft (custom order) |
LPL-R2CW-12-50 | 25013 | ColorSplash VÜ RGB-W, 20W | 50 ft |
LPL-R2CW-12-100 | 25014 | ColorSplash VÜ RGB-W, 20W | 100 ft |
LPL-R2CW-12-150 | 25015 | ColorSplash VÜ RGB-W, 20W | 150 ft (custom order) |
LPL-R2W-12-50 | 25050 | PureWhite VÜ, 20W | 50 ft |
LPL-R2W-12-100 | 25051 | PureWhite VÜ, 20W | 100 ft |
S.R. Smith Treo / Kelo (Fluidra)
| PN | Line | Cable |
|---|---|---|
FLED-C-TR-50 | Treo Color RGB 5W | 50 ft |
FLED-C-TR-80 | Treo Color RGB 5W | 80 ft |
FLED-C-TR-150 | Treo Color RGB 5W | 150 ft (custom order) |
KLED-C-30 | Kelo Color RGB 7W | 30 ft |
KLED-C-80 | Kelo Color RGB 7W | 80 ft |
Florida Sun Seeker PoolTone
- PoolTone Nicheless 1.5″ small-face and large-face lights, 12V or 120V
- Marketed as a direct replacement for Hayward ColorLogic 160 and 180
- Resin-filled model SKU
CP-FC-PC55
PAL Lighting (Treo / Evenglow)
- PAL Treo Mini, Treo Micro, Treo Max, Treo Retro, Evenglow Nicheless — sold via Color Touch / PCR transformer system
- Note: PAL runs 12V/24V DC, not the 12VAC standard, so the controller side differs even though the light fits the same niche
Pureline (InyoPools budget aftermarket)
PL5845PureColors color-changing 12V, 100 ft cord, nicheless return-fittingPL5815LED replacement bulb
Amazon / direct-import brands
- AquaChrome, Life-Bulb, Jeavle, Generalman, OGDVOWZ, HQUA, HYMIOR — various 1.5″ nicheless RGBW models
- All compatible with Hayward 1.5″ niches via same standard fitment
Inside the housing
Engineered to outlast OE
The design decisions that separate our replacement lights from cheaper alternatives.
Perma-seal housing
UV-resistant polymer with sealed seams. No yellowing, cracking, or water intrusion.
Liquid-cooled electronics
Driver runs cool. Lower operating temperature means significantly longer LED life.
Soft diffuse lens
Even illumination across the whole pool. No glaring hot spot like OE lights produce.
High-efficiency LED chipset
Visibly brighter than the OE light. Full luminance across all 13 RGB color modes.
What customers are saying
4.7
★★★★★
Based on 3 reviews
★★★★★
✓ Verified buyerSampleBright and even, no hot spot
Light spreads evenly across the pool instead of the harsh bright spot my old Hayward light threw. Color cycling could be a touch faster, but for the price it is a clear upgrade.
★★★★★
✓ Verified buyerSampleWay cheaper than a new Hayward
The dealer quote for a new Hayward light was painful. This was a fraction of the cost, fit the niche perfectly, and shipped quickly. No complaints at all.
Specifications
Tech specs and what's in the box
Everything you need to know before ordering.
Niche size
1.5″ nicheless
Voltage
12VAC
Color modes
13 (RGB + white)
Housing
Perma-seal UV-stabilized polymer
Lens
Soft diffuse, anti-glare
Cooling
Liquid heat transfer to pool water
LED driver
High-efficiency, low operating temperature
Warranty
2 years against water intrusion + LED failure
Shipping
Free US. Ships same business day before 2pm ET
In the box
Replacement light and printed install guide
Easy 3-step install
Three steps. 30 minutes.
Swap your old pool light in under 30 minutes with basic hand tools. No pool drain required.
Step 01
Remove the old light
Unscrew the old light from its niche and lift it out at the deck. Standard hand tools, no specialty equipment needed.
Step 02
Disconnect at the junction box
Disconnect the cable at the junction box, then pull through your new light’s smooth-jacket cable. Glides through tight conduit without binding.
Step 03
Connect and drop in
Connect the new light’s leads, thread it into the same niche, and tighten by hand. Power on and you’re done.
Before you order
Common questions
The most common questions we get about this replacement light.
How do I know if this fits my Hayward light?
Match the part number on your existing Hayward light against the compatibility list above. We have direct drop-in replacements for ColorLogic 320, ColorLogic 160, and CrystaLogic 1.5″ nicheless models in 30, 50, and 100 ft cable lengths. If your light has a 150 ft cable, we can custom-order one for you. If your light isn't listed (or you have a larger 10″ niche light like ColorLogic 4.0 or Universal ColorLogic), send us a photo — we'll confirm fitment, and our 10″ niche replacement is coming soon.
Does this work with my existing Hayward controller?
Yes. The light runs on standard 12VAC and works with any Hayward pool light controller. The 13 RGB color modes change with on/off power cycling, which every controller supports. Native sync with Hayward OmniLogic / ProLogic named color programs is coming in a future firmware update.
Do I need to drain my pool to install it?
No. The light installs the same way as the OE Hayward light. Pull the old one out at the deck, swap, and reinstall. No drain required. Most installs take under 30 minutes with basic hand tools.
What comes in the box?
The replacement light and a printed install guide. Unscrew your old Hayward light from its niche, disconnect at the junction box, and connect the new light’s leads to the same wiring.
How fast does this ship?
Orders placed before 2pm ET ship the same business day. Most US customers see delivery in 2 to 4 business days via ground. Free shipping is included on every order. 150 ft cable custom orders typically ship within 5 to 7 business days.
What’s the warranty?
Two years against water intrusion and LED failure. If the light fails for either reason in that window, we replace it. Just keep your order email. No registration required.
