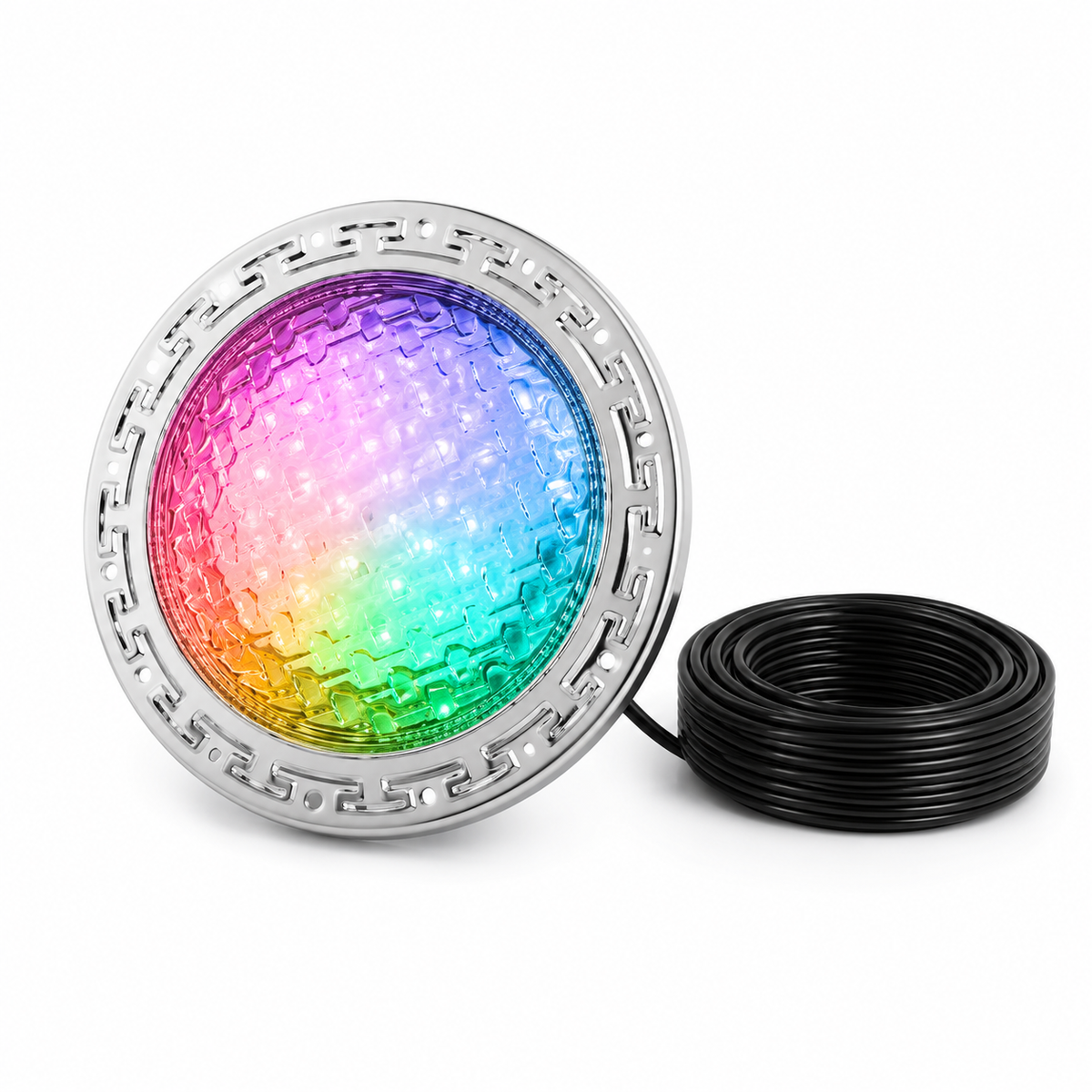

LED Pool Light Replacement for Hayward ColorLogic 4.0 - 10 Inch Niche

A drop-in 10 inch LED replacement for large wet niche pool lights that pays for itself. Save up to $100 per year on electricity compared to a standard incandescent pool light. Choose your voltage (12VAC or 120VAC), cable length (50, 100, or 150 ft), and brightness (35W or 42W), all selectable at checkout to match your existing setup exactly. The 35W output is equivalent to a 500W incandescent bulb, delivering brilliant illumination at a fraction of the energy. Not sure what to choose? Give us a call and we will walk you through it.

This light installs in the standard large 10 inch niche used by the Hayward ColorLogic 4.0, ColorLogic 2.5, and AstroLite, the Pentair IntelliBrite 5G and Architectural Series, the Pentair Amerlite, Sta-Rite, Jacuzzi brand, and the Jandy Pro Series large niche lights, with the same screw-at-top mounting and connection at your existing junction box. It also replaces Hayward Universal ColorLogic and CrystaLogic lights that were retrofitted into a standard large niche. No pool drain required, and most swaps take about 30 minutes.

If your existing fixture is 12V, select the 12VAC option for a direct swap. If your existing fixture is 120V the light fits your niche and runs directly on your existing circuit. Hayward tip: ColorLogic part numbers starting with SP0527 or SP0525 are 120V, while SP0524 and all Universal ColorLogic (LPCUS) and CrystaLogic (LPLUS, LPWUS) lights are low voltage. Not sure? Check the label on your existing light or transformer, or text us a photo and we will confirm.

Full RGB color modes plus clean bright white, from a sealed fixture rated for 50,000 hours. No bulb to change and no lens gasket to reseal, which ends the bulb-and-gasket cycle that defines the incandescent originals while cutting energy use by 80% or more.

Built to outlast the original:

• Save up to $100/year on electricity vs. incandescent pool lights
• Selectable voltage: 12VAC or 120VAC to match your existing circuit
• Selectable cable length: 50, 100, or 150 ft
• Selectable brightness: 35W (about 500W incandescent equivalent) or 42W
• Perma-seal UV-stabilized housing with no water intrusion path
• 316 Marine Grade Stainless Steel housing for durability
• Thick glass lens, no cheap plastic like competitors.
• Sealed unit design, so the whole fixture is the replacement part
• Soft diffuse lens for even illumination with no glare hot spot
• High-efficiency LED chipset with full RGB color and bright white


Covered by a 2-year warranty against water intrusion and LED failure. Free US shipping. Not sure about fitment or voltage? Text a photo of your light to (239) 350-3110 and we will confirm before you order.

Important niche check for Universal ColorLogic and CrystaLogic owners: Hayward's Universal ColorLogic and CrystaLogic lights install two different ways. If yours was retrofitted into a standard large 10 inch niche (Hayward SP0600 or SP0607 series, or a Pentair, Jandy, Sta-Rite, or Jacuzzi large niche), our light is a direct swap. If yours was installed in Hayward's small low profile all-plastic UCL niche (LFGUY1000 or LGGUY1000, common in newer construction), this 10 inch light will not fit that niche. The low profile niche is a compact, shallow housing sized only for the UCL light, while a standard large niche has a roughly 10 inch opening and a deep housing. Not sure which you have? Text us a photo and we will tell you.

Compatible OEM Part Numbers This Light Replaces

Hayward ColorLogic 4.0 (120V): SP0527LED30, SP0527LED50, SP0527LED100, SP0527SLED30, SP0527SLED50, SP0527SLED100, W3SP0527LED50, W3SP0527LED100, W3SP0527SLED50, W3SP0527SLED100

Hayward ColorLogic 2.5 (120V): SP0525LED50, SP0525LED100, SP0525SLED30, SP0525SLED50, SP0525SLED100

Hayward ColorLogic (12V): SP0524LED50, SP0524LED100, SP0524SLED50, SP0524SLED100

Hayward Original ColorLogic (check label for voltage): SP0520 and SP0520S series

Hayward Universal ColorLogic (low voltage, standard large niche installs only): LPCUS11050, LPCUS11100, LPCUS11150, W3LPCUS11050, W3LPCUS11100, networked LPCUN11050, LPCUN11100, Universal ColorLogic 2.0 LPCUS22050, LPCUS22100, LPCUS22150

Hayward CrystaLogic White (low voltage, standard large niche installs only): LPLUS11050, LPLUS11100, LPLUS11150, LPWUS11030, LPWUS11050, LPWUS11100, LPWUS11150, LPLUS22050, LPLUS22100, LPWUS22050, LPWUS22100

Hayward AstroLite incandescent (12V and 120V versions): SP0580 series including SP058015, SP058030, SP058050, SP058130, SP058150, SP0583SL30, SP0583SL50, SP0583SL100, W3SP0583SL100, SP0584 stainless versions

Jandy WaterColors RGBW large (120V): CPHVRGBWS30, CPHVRGBWS50, CPHVRGBWS100, CPHVRGBWP100, CPHVRGBWS150, CPHVRGBWS250, CPHVRGBWS50C, CPHVRGBWS100C, CPHVRGBWP100C

Jandy WaterColors LED large (120V): CPHVLEDS30, CPHVLEDS50, CPHVLEDS100, CPHVLEDP100, CPHVLEDS150, CPHVLEDS250

Jandy white LED large (120V): WPHV5LS50, WPHV5LS100, WPHV5LS150, WPHV5LS250, WWPHV5LS150, WPHV3LS50, WPHV3LS100, WPHV3LS150, WWPHV3LS150

Jandy WaterColors RGBW large (12V): CPLVRGBWS30, CPLVRGBWS50, CPLVRGBWS100, CPLVRGBWP100, CPLVRGBWS150, CPLVRGBWS50C, CPLVRGBWS100C, CPLVRGBWP100C

Jandy WaterColors LED large (12V): CPLVLEDS30, CPLVLEDS50, CPLVLEDS100, CPLVLEDP100, CPLVLEDS50C, CPLVLEDS100C, CPLVLEDP100C

Jandy white LED large (12V): WPLV5LS50, WPLV5LS100, WPLV5LS150, WWPLV5LS150, WPLV3LS50, WPLV3LS100, WPLV3LS150, WWPLV3LS150

Pentair IntelliBrite 5G color pool (120V): 601000, 601001, 601002, 601003, 601004, 602000, 602001, 602002, 602003, 602004, 628674

Pentair IntelliBrite 5G color pool (12V): 601010, 601011, 601012, 601013, 602010, 602011, 602012

Pentair IntelliBrite 5G white pool (12V and 120V versions, check label): 601100, 601101, 601102, 601103, 601104, 601105, 601106, 601107, 601108, 601200, 601201, 601202, 601203, 601204, 601205, 601206, 601207, 601208, 601300, 601301, 601302, 601303, 601304, 601305, 601306, 601307, 601308, Turtle Edition 602120, 602121, EC variants EC-602122, EC-602124, EC-601302, EC-601307

Pentair Architectural Series color: 120V 602185, 602186, 602187, 602188, 602206 and 12V 602151, 602152, 602153, 602154

Pentair Architectural Series white 300W equivalent: 120V 602181, 602182, 602183, 602184, 602207 and 12V 602143, 602144, 602145, 602146

Pentair Architectural Series white 500W equivalent: 120V 602177, 602178, 602179, 602180, 602208 and 12V 602139, 602140, 602141, 602142

Pentair Architectural Series warm white: 120V 602189, 602190, 602191, 602192, 602221 and 12V 602147, 602148, 602149, 602150

Pentair Architectural Series Turtle: 120V 602223, 602231 and 12V 602236, 602242

Pentair Amerlite (120V): EC602128 and related configurations

Compatible Niches

Hayward niches: DuraNiche SP0600, SP0600U, JiffyNiche SP0607, SP0607U, SP0604C, SSNiche SP0609C

Pentair niches: 45361000, 620004, 60028300, 79200255, 79206700, 78210200, 78210300, 78210400, 78210401, 78210500, 78210600, 78210700, 78232400, 78232500, 79211600

Jandy niches: PLNICLRG, PLNICVFLRG, SSNICLRG, SSNICLRG1R, SSNICLRG1S, WT000002

Sta-Rite niches: 05161-2352 through 05161-2369, 05163-2395 through 05163-2396

Jacuzzi niches: 9413 series

Not compatible: Hayward low profile UCL niche LFGUY1000 and LGGUY1000
