LED Pool Light Replacement for Pentair Amerlite, IntelliBrite 5G, SAm - 10 Inch Niche - RGBW

  • LED replacement pool light, angled view showing lens detail
  • 10 inch LED replacement pool light showing actual white illumination output
  • Pentair Amerlite and IntelliBrite 5G 10 inch LED replacement installed in a pool
  • 10 inch LED replacement pool light, wiring and connector detail
  • 10 inch LED pool light at night showing RGB color output
  • 10 inch LED replacement pool light, side profile view
  • 10 inch LED replacement pool light for Pentair Amerlite, IntelliBrite 5G, and SAm niches
  • 10 inch LED replacement pool light, top-down view
  • 10 inch LED replacement pool light held in hand for size reference
Cable Length
Voltage
Not sure what to select?
$289.00 USD
$289.00 USD $599.00 USD
Shipping calculated at checkout.

If you have multiple lights, we recommend replacing all lights at the same time. Otherwise- when mixing our lights with Pentair originals on the same circuit, they may drift out of sync over time.

Color Sync

Our color changing program matches the Pentair color sequence when using Intellitouch and Easytouch automation systems.

Perfect Fit

Our lights use the standard 10 inch bottom mounting tab and the top screw to fit into your existing niche.

2 Year Warranty

With our ultra durable design, we can offer double the warranty of the big brands.

Anti Glare Lens

Our specially designed glass fresnel lens directs light to the pool surface, not your eyes.

A drop-in 10 inch LED replacement for large wet niche pool lights that pays for itself. Save up to $100 per year on electricity compared to a standard incandescent pool light. Choose your voltage (12VAC or 120VAC), cable length (50, 100, or 150 ft) all selectable at checkout to match your existing setup exactly. The 35W output is equivalent to a 500W incandescent bulb, delivering brilliant illumination at a fraction of the energy. Not sure what to choose? Give us a call and we will walk you through it.

This light installs in the standard large 10 inch niche used by the Pentair IntelliBrite 5G and Architectural Series, the Pentair Amerlite, Sta-Rite, the Hayward AstroLite, Jacuzzi brand, and the Jandy Pro Series large niche lights, with the same screw-at-top mounting and connection at your existing junction box. No pool drain required, and most swaps take about 30 minutes.

If your existing fixture is 12V, select the 12VAC option for a direct swap. If your existing fixture is 120V the light fits your niche and runs directly on your existing circuit. Not sure? Check the label on your existing light or transformer, or text us a photo and we will confirm.

Full RGB color modes plus clean bright white, from a sealed fixture rated for 50,000 hours. No bulb to change and no lens gasket to reseal, which ends the bulb-and-gasket cycle that defines the incandescent originals while cutting energy use by 80% or more.

Built to outlast the original:

  • Save up to $100/year on electricity vs. incandescent pool lights
  • Selectable voltage: 12VAC or 120 VAC to match your existing circuit
  • Selectable cable length: 50, 100, or 150 ft
  • Selectable brightness: 35W (about 500W incandescent equivalent) or 42W
  • Perma-seal UV-stabilized housing with no water intrusion path
  • 316 Marine Grade Stainless Steel housing for durability
  • Thick glass lens, no cheap plastic like competitors.
  • Sealed unit design, so the whole fixture is the replacement part
  • Soft diffuse lens for even illumination with no glare hot spot
  • High-efficiency LED chipset with full RGB color and bright white

Covered by a 2-year warranty against water intrusion and LED failure. Free US shipping. Not sure about fitment or voltage? Text a photo of your light to (239) 350-3110 and we will confirm before you order.

Compatible OEM Part Numbers This Light Replaces

Pentair IntelliBrite 5G color pool (120V): 601000, 601001, 601002, 601003, 601004, 602000, 602001, 602002, 602003, 602004, 628674

Pentair IntelliBrite 5G color pool (12V): 601010, 601011, 601012, 601013, 602010, 602011, 602012

Pentair IntelliBrite 5G white pool (12V and 120V versions, check label): 601100, 601101, 601102, 601103, 601104, 601105, 601106, 601107, 601108, 601200, 601201, 601202, 601203, 601204, 601205, 601206, 601207, 601208, 601300, 601301, 601302, 601303, 601304, 601305, 601306, 601307, 601308, Turtle Edition 602120, 602121, EC variants EC-602122, EC-602124, EC-601302, EC-601307

Pentair Architectural Series color: 120V 602185, 602186, 602187, 602188, 602206 and 12V 602151, 602152, 602153, 602154

Pentair Architectural Series white 300W equivalent: 120V 602181, 602182, 602183, 602184, 602207 and 12V 602143, 602144, 602145, 602146

Pentair Architectural Series white 500W equivalent: 120V 602177, 602178, 602179, 602180, 602208 and 12V 602139, 602140, 602141, 602142

Pentair Architectural Series warm white: 120V 602189, 602190, 602191, 602192, 602221, 619914 and 12V 602147, 602148, 602149, 602150

Pentair Architectural Series Turtle: 120V 602223, 602231 and 12V 602236, 602242

Pentair Amerlite (120V): 78428100, 78928500, 78927000, 78927900, 78441100, 78451100, EC-602127, EC-602128

Pentair Amerlite (12V): 78418100, 78415100, 78438100, 78435100

Pentair SAm Spectrum Amerlite color (12V): 600015, 600016, 600017, 600018, 600019, 600020, 600021

Jandy Pro Series large niche color LED (120V): CPHVLEDS100

Hayward AstroLite incandescent (12V and 120V versions): SP0580 series including SP0583

Hayward AstroLite 500W 120V thermoplastic trim: SP0583L, SP0583L15, SP0583L30, SP0583L50, SP0583L100, W3SP0583L50, W3SP0583L100

Compatible Niches

Pentair niches: 45361000, 620004, 60028300, 79200255, 79206700, 78210200, 78210300, 78210400, 78210401, 78210500, 78210600, 78210700, 78232400, 78232500, 79211600

Hayward niches: DuraNiche SP0600, SP0600U, JiffyNiche SP0607, SP0607U, SP0604C, SSNiche SP0609C

Jandy niches: PLNICLRG, PLNICVFLRG, SSNICLRG, SSNICLRG1R, SSNICLRG1S, WT000002

Sta-Rite niches: 05161-2352 through 05161-2369, 05163-2395 through 05163-2396

Jacuzzi niches: 9413 series

Not compatible: Hayward low profile UCL niche LFGUY1000 and LGGUY1000

Compatible Light Part Numbers

602053

602054

602055

602056

602102

602103

602104

602105
-

618040

Specifications

Lumen Output (Brightness)

35W- 3650 lumens

Cord Length (ft)

50/100/150 Selectable

Colors

RGBW (Others available with customization)

Warranty

2 Year Standard

Voltage

12 VAC / 120VAC Selectable

Light Sequence

Standard Pentair 12 color

LED

SMD 3535 High Output

Power

35W/42W Selectable

Durability

IP68

Compliance

Meets UL676:2015 and CSA C22.2 #89:2015 of Electric Code

Controller Options

These lights are 12VAC or 120VAC depending on your selection and can function with several methods to power them.

1. Existing Pentair Automation- They will sync the color modes with your automation controller. Simply remove the old lights and install the new lights.

2. On/off switch- If using a standard on off light switch, the color sequence will change when you turn the lights on rapidly.

Download Installation Manual
LED Pool Light Replacement for Pentair Amerlite, IntelliBrite 5G, SAm - 10 Inch Niche - RGBW

$289.00 USD

10 inch niche Replacement LED Pool / Spa Light for Pentair Intellibrite and others

How do I know if it's compatible?

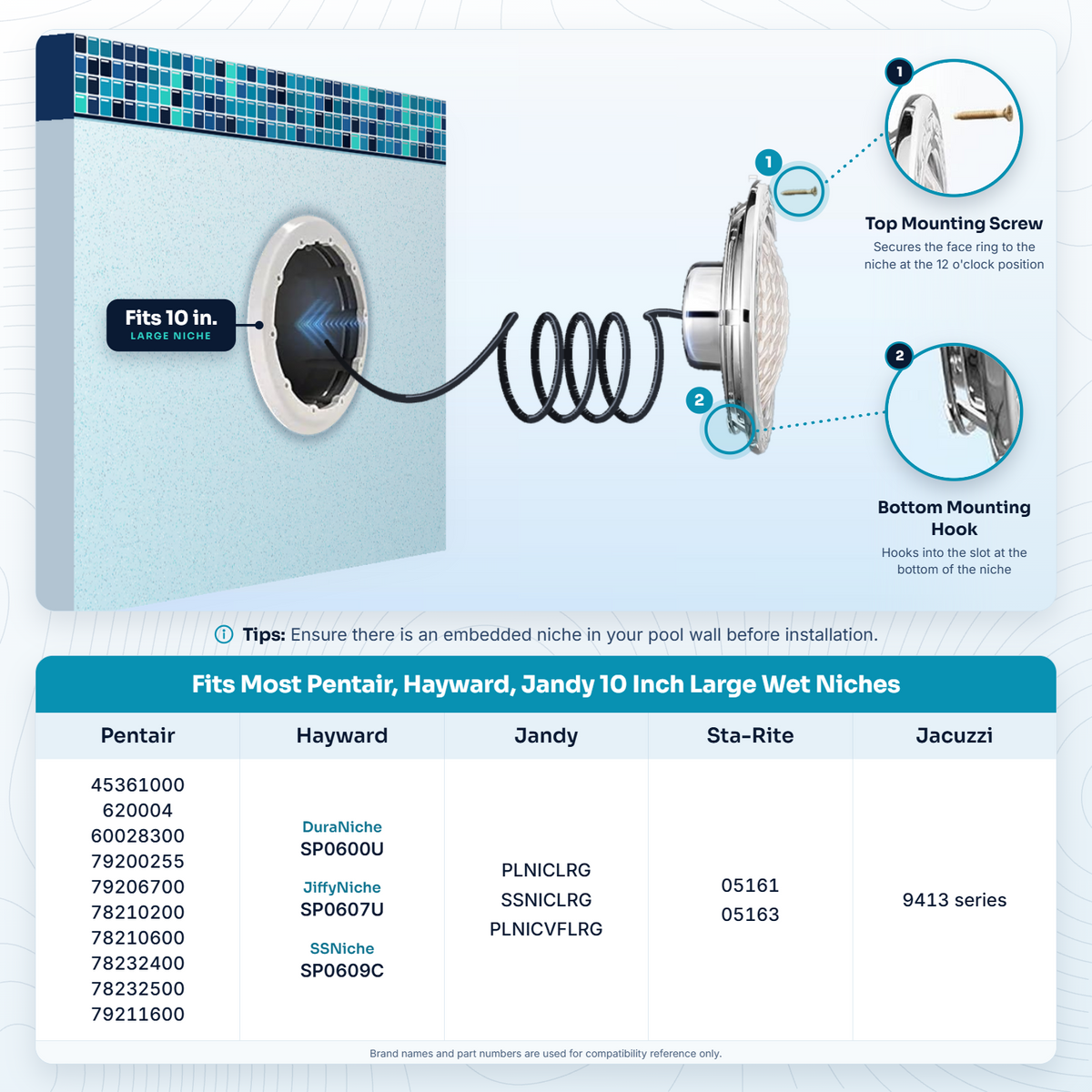

The 10 inch wet niche is a recessed opening in your pool wall.

It is identified by a top screw that secures the light and a slot at the bottom where a mounting tab will fit into and secure it at the bottom.

Our lights fit into the same niche and use the same mounting style as your removed bulb.

Real customers real photos.

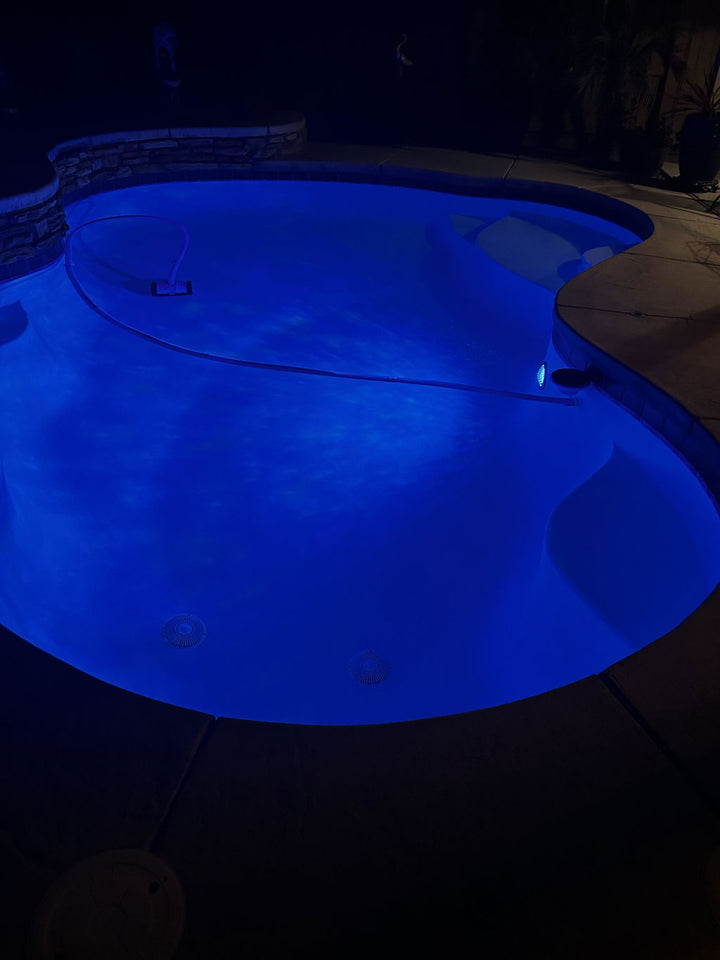

  • Example Pool 1

    This customer used a single 10 inch 35W light in their kidney shaped pool

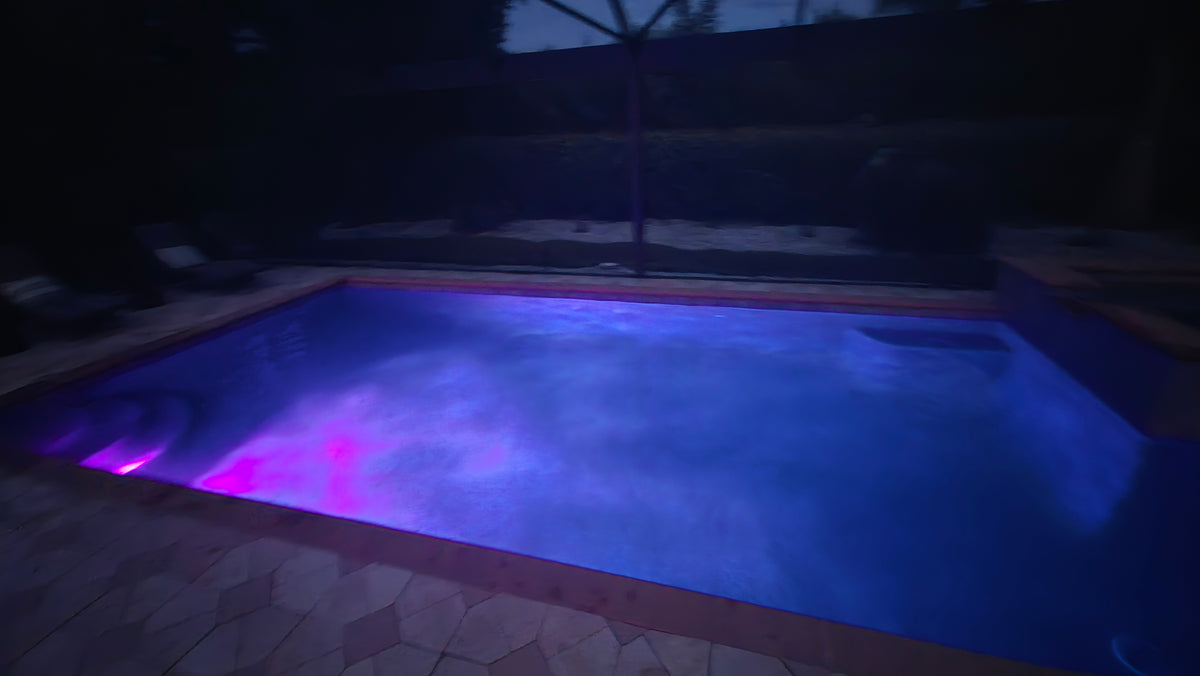

  • Example Pool 2

    This customer is using a single 10inch Pentair-style light in a large rectangular pool.

What's in the box?

  • LED Light

    We send the light in your specific power requirement.

  • Installation Tool

    We include a notched installation tool that will tighten to the light.

  • Gasket

    There is a round gasket that will be in the installation bag.

  • Attached Cable

    Your specified length cable will come atttached to the light.

Superior Brightness

High Output CREE LED

We use the highest grade LED's manufactured by CREE. Others use generic LED's which result in shorter life, lower output, and less radiant colors.

PLD SPECIAL FEATURES

COLORSYNC

Keep the familiar color pattern for your Pentair lights.

ANTI GLARE LENS

No more blinding your pool guests

RESIN FILLED

For maximum durability, our electronics are sealed completely. Feel the difference.

Illustration of the adjustable dimming feature on Pool Lights Direct LED pool lights

Colorsync

Use your existing Pentair Intellibrite and Easytouch Automation to control the lights, or the familiar color changing pattern with other control methods.

Anti Glare Lens

No glare or hot spots on these lights. Just a smooth, even illumination of the pool

Close-up of Pool Lights Direct LED pool light technology

Resin Filled

Our lights are resin filled to prevent cracks and leaks. Competitors keep a hollow body that causes cracking and leaks over time.

Do you have a replacement light for me?

Most likely- yes! Call our client advisors during business hours for a recommendation.

How do I know what light I need?

Use our Light Finder to find the correct match. You can also text a photo of your light for a suggestion.

Why are your lights 1/3 the cost of the brand name version?

Brand name lights get sold from the factory to the OEM, then to the distributor or dealer, and then to the installer. Each step adds 30-50% to the price. By the time you have it installed, the price can be $500-$800 each. We sell direct to you to eliminate those markups.

Are your lights designed better?

Our goal is to use improved testing, design, and technology to provide a product that lasts longer than the original at a fraction of the price.

How are your lights controlled?

Each light has different control options- refer to the product page and there is a compatible controller section to describe how you can activate the lights.

Where are you based at?

Our headquarters is in Florida, and we ship worldwide.

What is your warranty?

Our warranty is 2 years, with optional extended warranties at checkout.

Why do the brand name lights fail after only 1-2 years?

The brand name lights use high power LED's with inadequate cooling and housing protection. Ours are designed to last longer.

What does Resin Filled mean and why is it better?

Low cost lights use a hollow design because its cheaper. This results in air pockets that constantly expand and contract with temperature. This flexing creates micro cracks in the housing that allows water to enter, shorting out the circuit. Our lights use resin to ensure there is no flexing of the material.

How long is shipping?

Our lights are made to order for now. In late 2026 we should have the warehouse stocked up for immediate shipment, but until then you should plan on 7-15 business days for shipping.

How do I install the lights?

We recommend you consult with a qualified pool tech to install. Some customers DIY install with youtube videos.

How long are your cables?

We offer various cable lengths to suit your application. Choose the best cable length at checkout. If you aren't sure, give us a call.
Designed in Florida.

Our lights are meticulously designed in the sunniest, harshest conditions to ensure your new lights will last for years.

Durability First.

Through extreme testing we can be confident of our designs lasting with exposure to constant use and chemical exposure.

Features that customers want.

We talk to pool owners and builders daily, so we can be sure of what the customers are needing on each revision.

  • All Patterns

    12

    Standard Pentair Color sequence

  • Efficient

    87%

    Energy savings

  • Up to

    600

    Lumen (brightness)
